Medispirex
Medispirex
| Product name | Model | Material | Specification | Code |
|---|---|---|---|---|
| Humeral nail Intramedullary Nail | SHG-IK | Titanium Alloy | 8 | 15728160 |

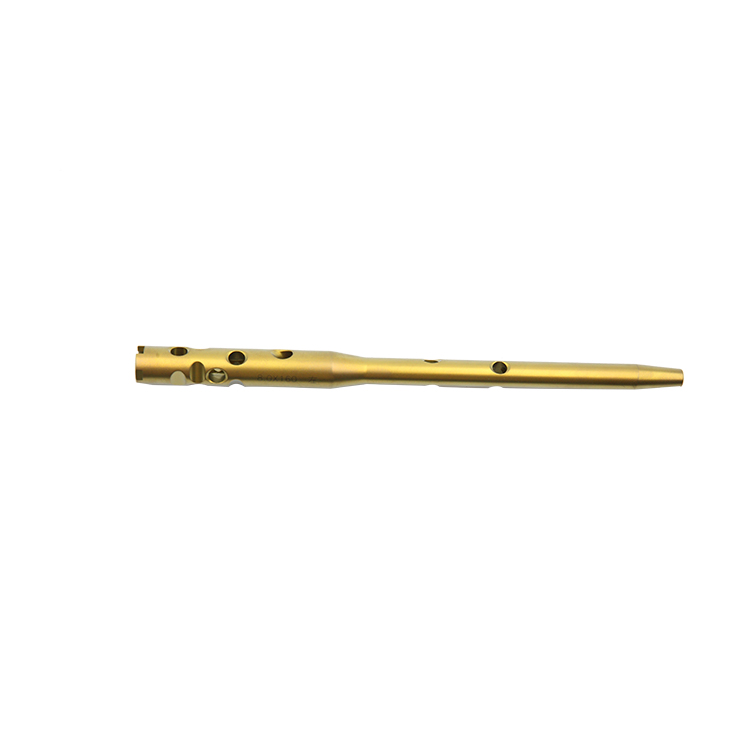

Intramedullary Nail: High-quality intramedullary nails designed for easy insertion and removal. Fabricated from premium Titanium alloy, this system significantly reduces the risk of outer wall impact and main nail inward movement. The versatile diameter makes it suitable for all major applications, ensuring a simple operation and minimally invasive implantation process.
| Product name | Model | Specification | Material | Code |
|---|---|---|---|---|
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×170×130° | Titanium Alloy | 15649170 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×200×130° | Titanium Alloy | 15649200 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×240×130° | Titanium Alloy | 15649240 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×15 | Titanium Alloy | 15601115 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×20 | Titanium Alloy | 15601120 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×70 | Titanium Alloy | 15600570 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×80 | Titanium Alloy | 15600580 |
| Proximal Femoral Nail Antirotation φ4.9 locking screw | SGM-IIK | 4.9×30--72 | Titanium Alloy | 15604930 |
| Femoral Nail locking screw I | SGG-IIIK | 6.5×75 | Titanium Alloy | 15246575 |
| Femoral Nail Intramedullary Nail | SGG-IIIK | 9.0-13.0 | Titanium Alloy | 15249340 |
| Humeral nail Intramedullary Nail | SHG-IK | 8 | Titanium Alloy | 15728160 |
The nail length is designed to align consistently with the natural anatomy of the femoral medullary cavity, optimizing fit and structural support.
Further improves fixation strength in cases of osteoporosis. The blunt end design of the locking screw reduces the risk of excessive penetration and tissue damage.

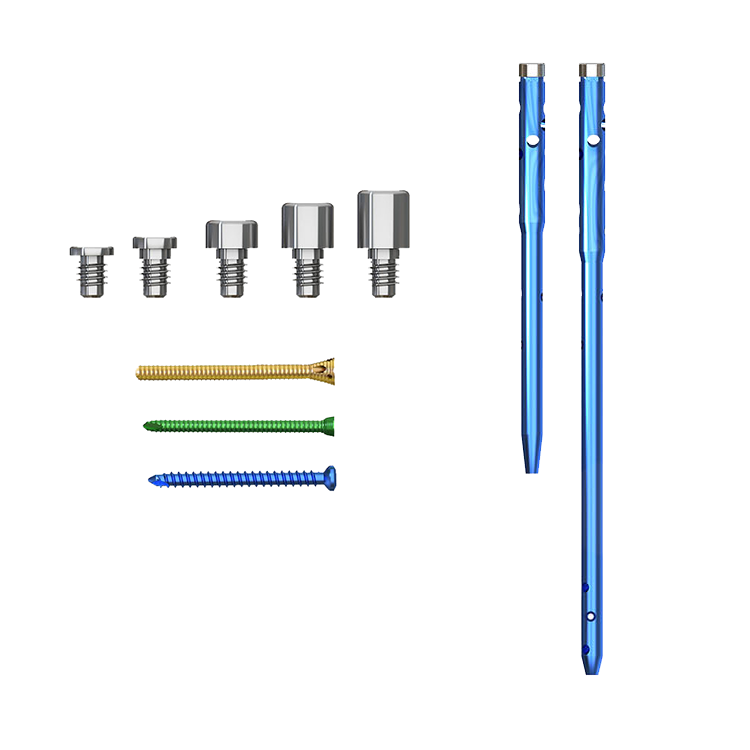

Short nails: Diameter of 8.0 / 9.5mm, length of 160mm.
Long nails: Diameter of 7.0 / 8.5mm, length of 180-315mm (15mm intervals).

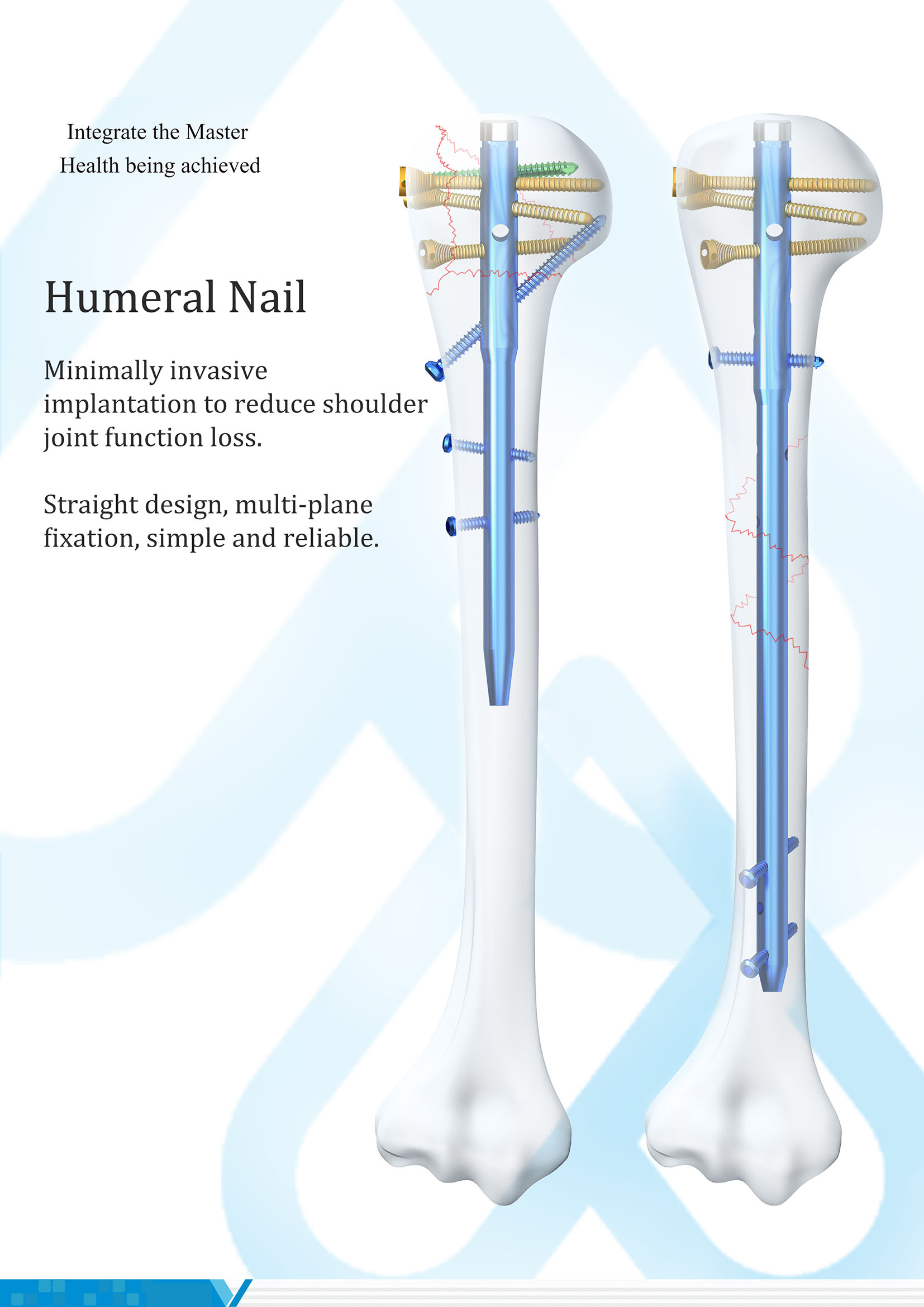

All nails feature a left and right type option, constructed from biocompatible titanium alloy. Designed for simple operation and minimally invasive implantation.

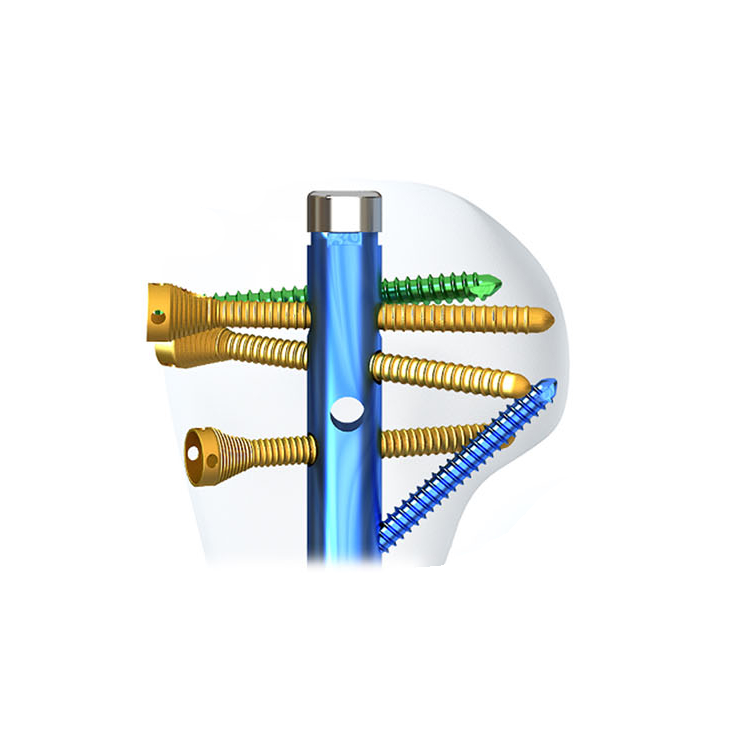

Features multi-plane and multi-locking screw fixation options to achieve optimal stability. The screw-in-screw configuration enhances support in osteoporotic bone, while the locking screw's blunt head and countersinking design reduce tissue irritation and excessive penetration risks.
Short screw: Utilizes two locking holes in different planes.

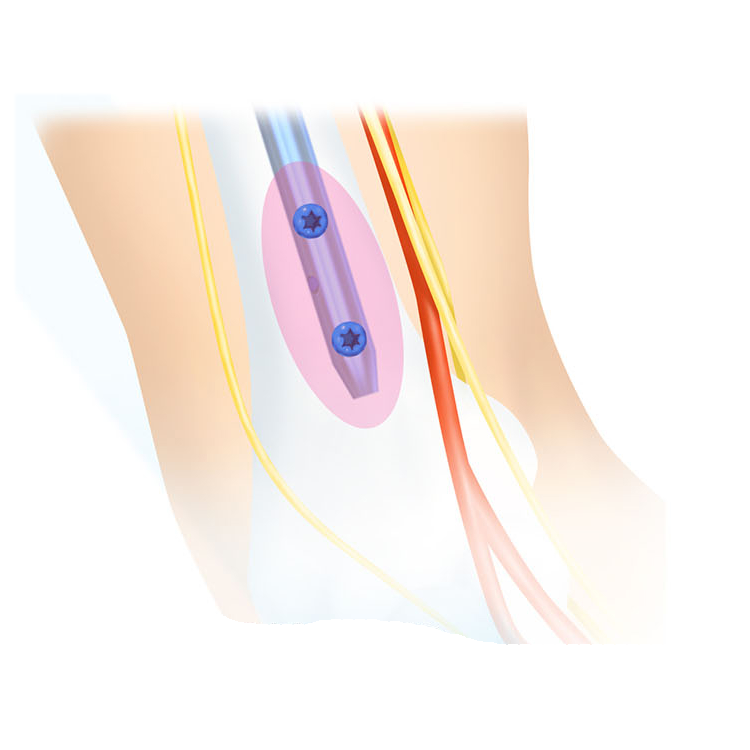

Long screw: Features three locking holes positioned safely to avoid key blood vessels between the median and radial nerves. Two anterior-posterior locking holes minimize rotation and displacement of distal fractures.
Features a specialized design with compression holes to increase stability in transverse or short oblique fractures. The self-sustaining compression mechanism functions without requiring a static screw for maintenance during operations.
Compared to systems with a 1.5m radian radius, the TFNA design (featuring a 1.0m radian radius) aligns the distal location in the center of the medullary cavity with double the accuracy, ensuring superior anatomical fit.
