Medispirex Medispirex

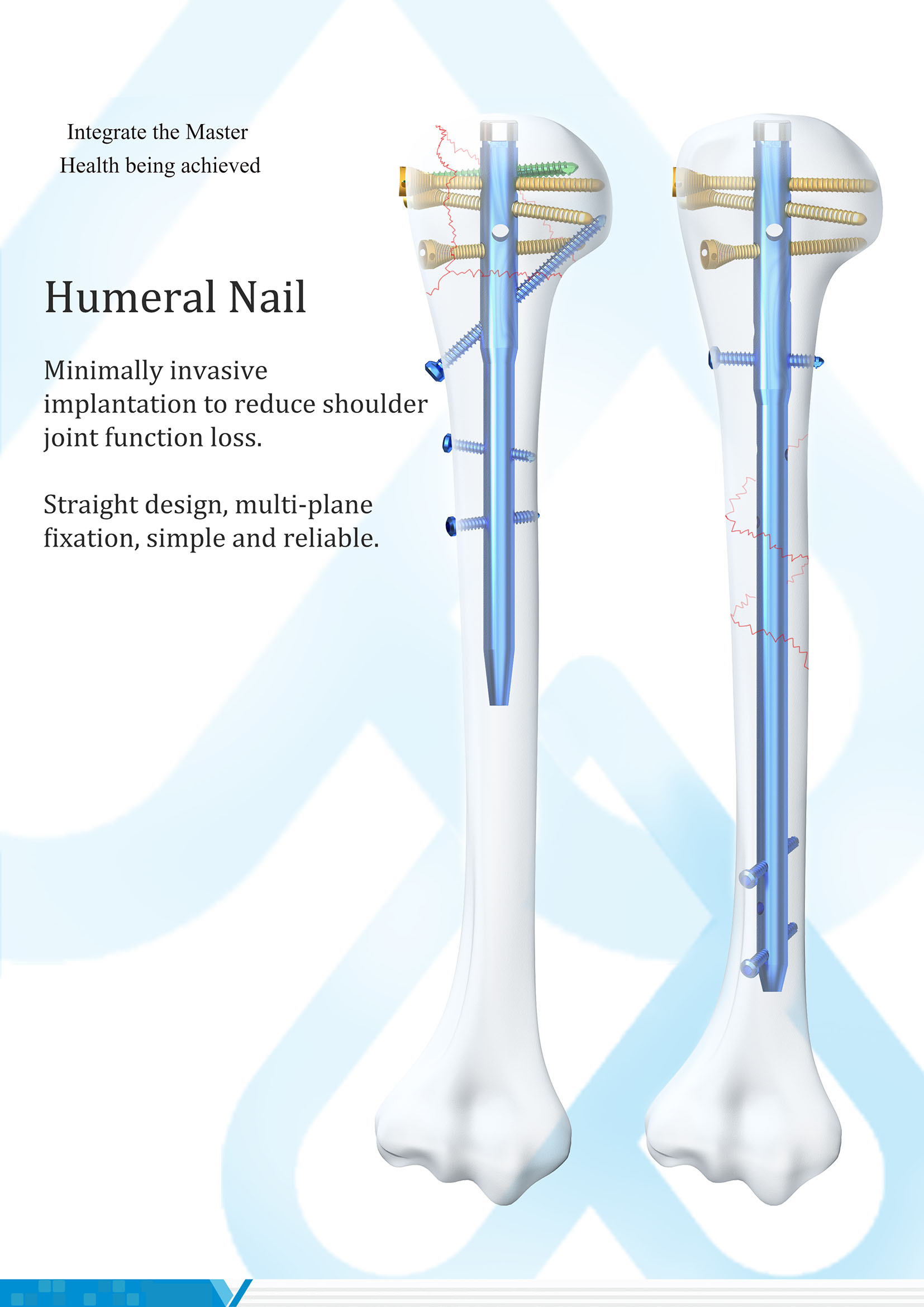

Geasure Trauma Orthopedic Implants Interlocking Titanium Alloy Multi-Lock Humeral Intramedullary Nail CE ISO Certified Class III

Product Description

Orthopedic Intramedullary Nails Banner
Products Description
Products Specifications Overview
Product name Model Material Specification Code
Humeral nail locking screw I SHG-IK Titanium Alloy 4.5 15724530

Intramedullary nail: All kinds of high quality intramedullary nails. Easy to insert and take out; Titanium alloy material; Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications; Simple operation and minimally invasive implantation.

Product name Model Specification Material Code
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×170×130° Titanium Alloy 15649170
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×200×130° Titanium Alloy 15649200
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×240×130° Titanium Alloy 15649240
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×15 Titanium Alloy 15601115
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×20 Titanium Alloy 15601120
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×70 Titanium Alloy 15600570
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×80 Titanium Alloy 15600580
Proximal Femoral Nail Antirotation φ4.9 locking screw SGM-IIK 4.9×30--72 Titanium Alloy 15604930
Femoral Nail locking screw I SGG-IIIK 6.5×75 Titanium Alloy 15246575
Femoral Nail Intramedullary Nail SGG-IIIK 9.0-13.0 Titanium Alloy 15249340
Humeral nail Intramedullary Nail SHG-IK 8 Titanium Alloy 15728160
Our Advantages
Advantage Overview
Radian Design

1. 1.0m radian radius

The length is consistent with the anatomy of the FEMORAL medullary cavity.

Screw Design

2. Screw-in-screw design

To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.

Nail Specifications

3. Short nail & Long nail options

Short nail: diameter of 8.0/ 9.5mm, length of 160mm.
Long nail: diameter of 7.0/ 8.5mm, length of 180-315mm (15mm interval).
All nails have left and right type, titanium alloy material. The diameter is suitable for all applications. Simple operation and minimally invasive implantation.

Details Images

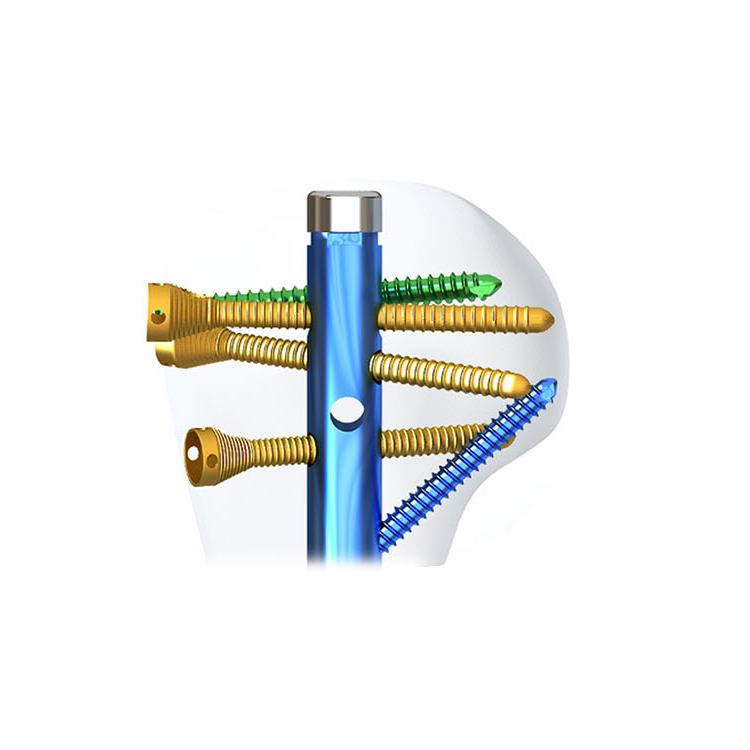

Proximal fixation detail
Proximal fixation:

Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration. Locking screw countersinking design to reduce soft tissue irritation.

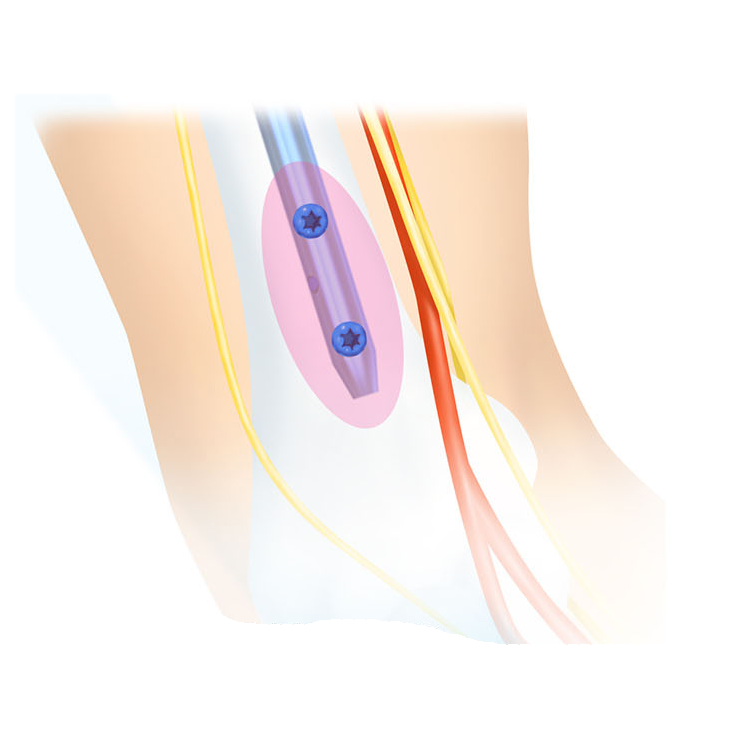

Distal fixation detail
Distal fixation:

Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve. Two anterior and posterior locking holes facilitate the manual operation, minimizing the occurrence of rotation and displacement of distal fracture.

Compression system detail
Compression:

Special design of compression holes. helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw is needed to maintain compression during operation.

TFNA System detail
TFNA System TFNA:

Compared with G3 with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of medullary cavity is twice as likely as that of G3.

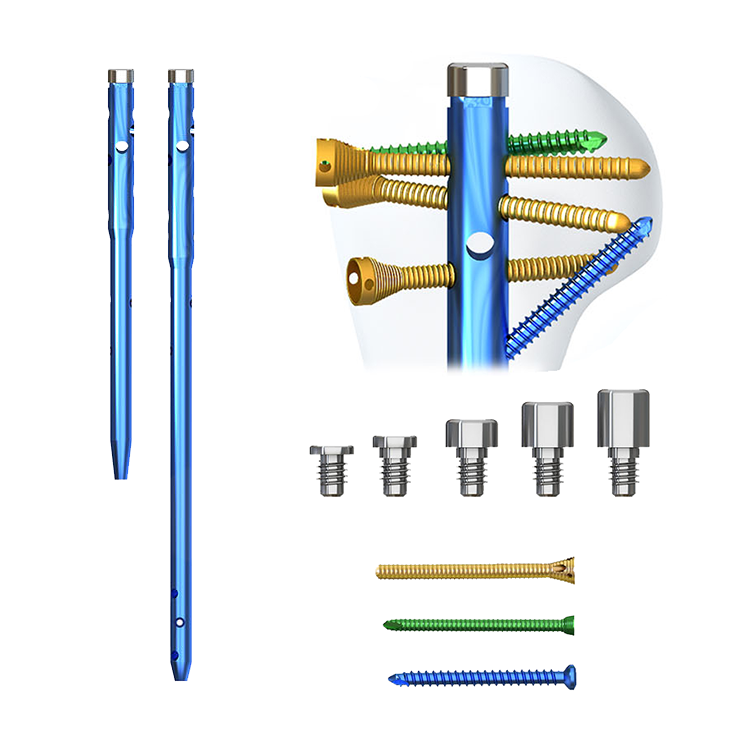

Implants display
Main Products
Company Profile
Manufacturing facility
Research laboratory

We are a leading orthopedic medical device R & D, manufacturing, and operation enterprise. We focus on the development, manufacturing, and sales of orthopedic trauma, spine, and bone joint implants and devices. The sales network covers a wide region, supported by professional service support. With first-class production equipment, professional R & D, technology and manufacturing teams, a quality management system in line with international standards, and an efficient marketing service strategy, we have won the affirmation of many partners. Our enterprise hosts a number of senior R & D technical teams with many years of experience in orthopedic medical devices, making unique achievements in the field of orthopedic medical devices. We put the talent development strategy in the first place, continuously building a professional innovation team with high quality and strong R & D capabilities. Adhering to the development concept of technological innovation, product innovation, and service innovation, we gather and integrate advantageous resources to serve the great cause of human health, working hard to move forward bravely.

Quality production floor
Product quality control
Why Choose Us
Quality assurance and certificate flow
FAQ
Q1 Would you please give some information on shipping mode and charges?

A: Normally we send through couriers like DHL, FEDEX, UPS, TNT etc. or post upon request from clients.

Q2 Do you have ISO 9001, ISO 13485, and CE approvals?

A: Yes, our manufacturing processes and products strictly comply with international standards. We hold valid ISO 9001, ISO 13485, and CE certificates for our primary orthopedic implant lines.

Q3 What is the minimum order that we can place? Do you provide free samples?

A: We expect your minimum orders to be at least US$500. However, we understand that customers need to place smaller sample orders in the beginning to test market our products. We can offer free samples, but do not pay the cost of freight.

Q4 Can I buy products not shown but similar to your catalogue?

A: Of course you can, just send us pictures or samples. But this takes a little longer time for delivery.

Q5 Do you have stock for listed products, or they are newly produced? What are your terms of payment?

A: Generally, we have stock for every listed product, which are produced monthly. However, it depends on our sales conditions. It is best to ask our sales representative for accurate inventory information. Payment <= 800USD, 100% in advance. Payment > 800USD, 30% T/T in advance, balance before shipment. Payment methods are via L/C, T/T, Western Union, PayPal, etc.

Q6 What material is used in your implants and orthopedic nails?

A: Our intramedullary nails and locking screws are manufactured from high-grade biocompatible Titanium Alloy, which ensures excellent strength, durability, and reduces outer wall impact risk.
