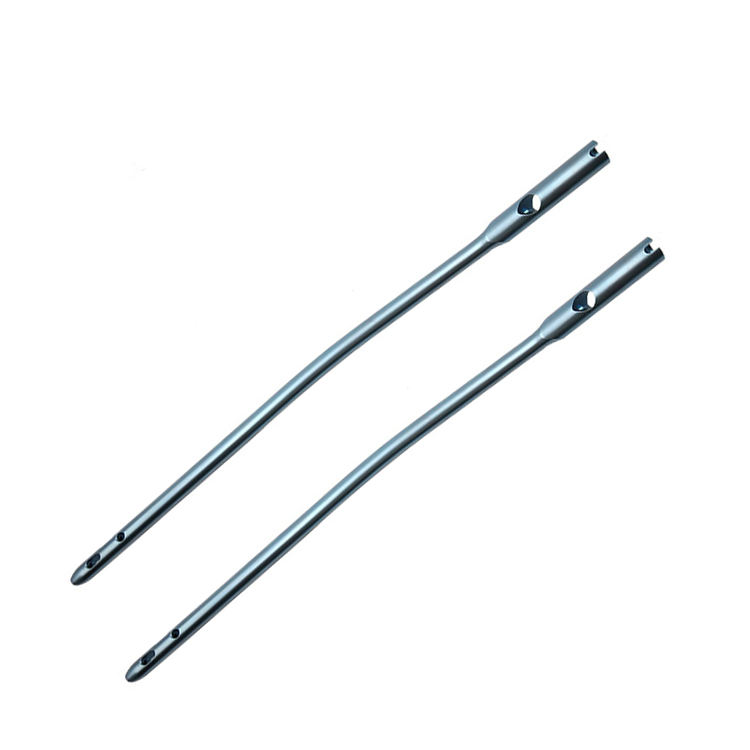

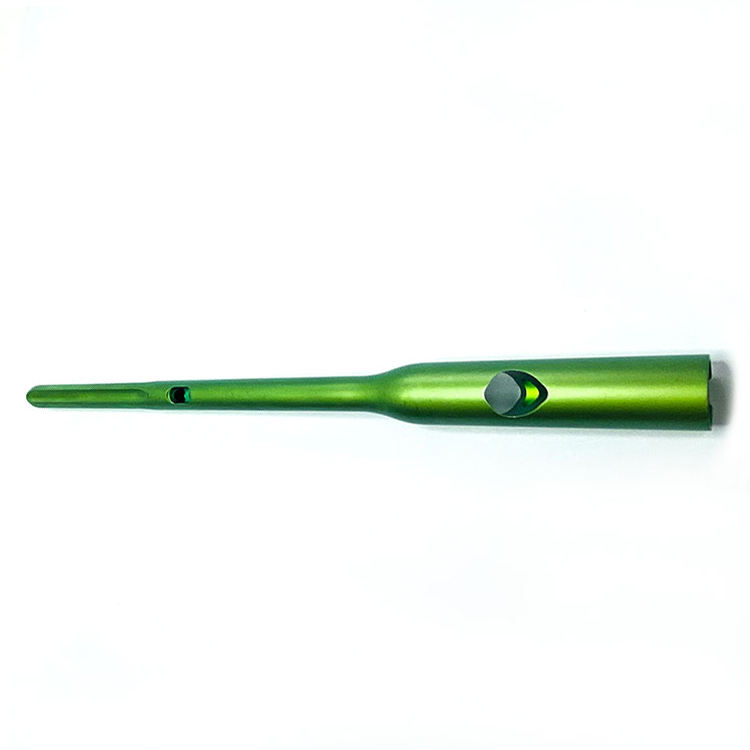

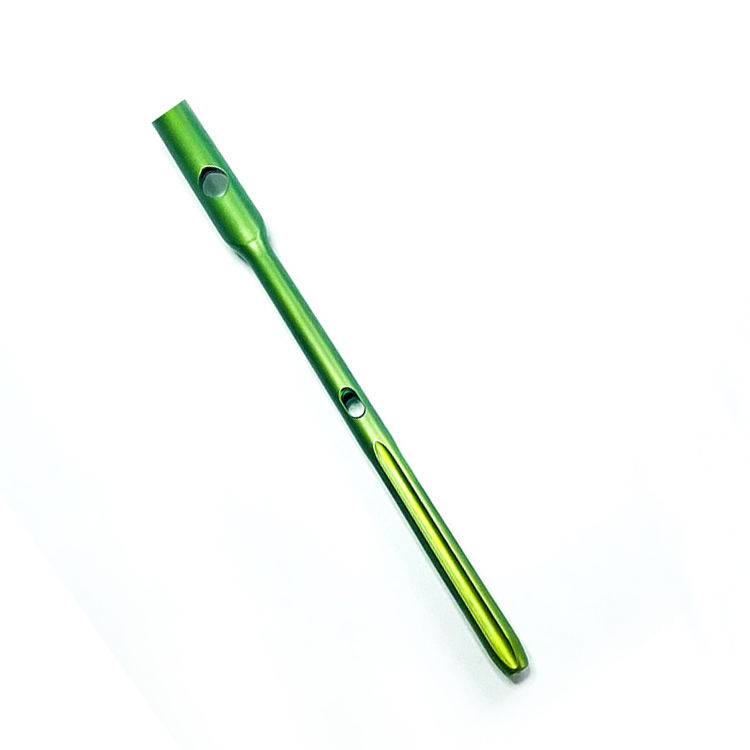

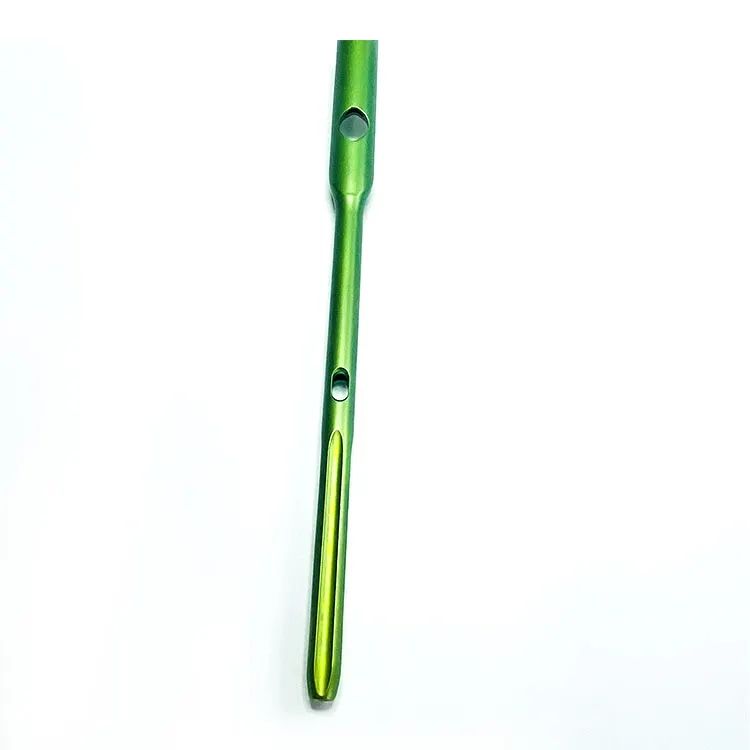

Our Intramedullary Nail System offers a comprehensive range of high-quality intramedullary nails engineered for optimal orthopedic performance. Designed for ease of insertion and removal, these implants are manufactured from medical-grade Titanium alloy to reduce the risk of outer wall impact and inward movement of the main nail. With adaptable diameters suitable for multiple clinical applications, our system facilitates simplified surgical operations and minimally invasive implantation.
| Product name | Model | Specification | Material | Code |
|---|---|---|---|---|
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×170×130° | Titanium Alloy | 15649170 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×200×130° | Titanium Alloy | 15649200 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×240×130° | Titanium Alloy | 15649240 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×15 | Titanium Alloy | 15601115 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×20 | Titanium Alloy | 15601120 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×70 | Titanium Alloy | 15600570 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×80 | Titanium Alloy | 15600580 |
| Proximal Femoral Nail Antirotation φ4.9 locking screw | SGM-IIK | 4.9×30--72 | Titanium Alloy | 15604930 |
| Femoral Nail locking screw I | SGG-IIIK | 6.5×75 | Titanium Alloy | 15246575 |
| Femoral Nail Intramedullary Nail | SGG-IIIK | 9.0-13.0 | Titanium Alloy | 15249340 |
| Humeral nail Intramedullary Nail | SHG-IK | 8 | Titanium Alloy | 15728160 |
1. 1.0m Radian Radius: The nail length matches the natural anatomical curvature of the femoral medullary cavity perfectly.
2. Screw-in-Screw Design: Promotes higher fixation strength for osteoporotic bone. The blunt end design of the locking screw reduces the risk of over-penetration.
3. Versatile Dimensions & Specifications:
• Short nail: diameter of 8.0/9.5mm, length of 160mm.
• Long nail: diameter of 7.0/8.5mm, length of 180-315mm (15mm intervals).
All nails feature left and right designs, constructed from biocompatible titanium alloy. The simple instrumentation configuration ensures easy operation and minimally invasive placement.
Multi-plane and multi-locking screw fixation options provide versatile choices for surgical operations to achieve optimal stability. The screw-in-screw design further enhances fixation strength in osteoporotic bone. Blunt-head locking screw design minimizes the risk of excessive penetration, while the countersunk design reduces local soft tissue irritation.
• Short screw: Features two locking holes in different planes.
• Long screw: Includes three locking holes placed within the safe zone between the median nerve and radial nerve to avoid key blood vessels. Two anterior-posterior locking holes facilitate manual insertion and minimize the risk of rotation or displacement of distal fractures.
The nail diameter should occupy 30-40% of the narrowest transverse diameter of the medullary cavity. Suitable applications:
• 3.0mm: for 6-8 years old
• 3.5mm: for 9-11 years old
• 4.0mm: for 12-14 years old
The special design of the compression holes helps enhance the overall stability of transverse or short oblique fractures. Features a self-sustaining compression mechanism that requires no static screw to maintain compression during surgical operations.
Compared to traditional implants with a 1.5m curvature radius, the TFNA system's 1.0m curvature radius allows for distal placement in the center of the medullary cavity with twice the alignment accuracy.
