| Picture number | Part Name | Specification | Size | Quantity | Coding | Drawing number |
|---|---|---|---|---|---|---|
| 1 | Radiographic Ruler | Development template | 9-12 | 1 | 90002201 | GA3X01 |
| 2 | Guide Wire 3.2 mm | Thread guide pin | 3.2×400 | 5 | 90002003 | GA1X03 |
| 3 | Hand Reamer | Hard expansion | 9 | 1 | 90002025 | GA1X25 |
| 4 | Flexible Ream Shaft | Soft expansion tool bar is rotating forward | 8.5-14 | 1 | 90002204 | GA3X0500 |
| 5 | Opening Drill Bit, cannulated | Proximal Hollow Drill | 14 | 1 | 90002203 | GA3X04 |
| 6 | Protection Sleeve | Inlet guide tube | \ | 1 | 90002601 | GA8X01 |
| 6 | Handle for Protection Sleeve | Channel handle | \ | 1 | 90002602 | GA8X0200 |
| 7 | Gripper | Guide pin holder | 117 | 1 | 90002050 | GA1X4100 |
| 8 | Connection Screw, cannulated | Connecting bolt | M8×0.75 | 2 | 90002218 | GA3X09 |
| 9 | Rod Pusher for Reaming Rod with Hexagonal Screwdriver | Ball handle wrench | SW6.5 | 1 | 90002217 | GA3X0800 |
| 10 | Insertion Handle for Nail | Handle | \ | 1 | 90002219 | GA3X10 |
| 11 | Multihole Drill Sleeve | Cellular locator | 17/3.2 | 1 | 90002603 | GA8X0300 |
| 12 | quick coupling | Adapter | 85 | 1 | 90002056 | GA1X4700 |
| 13 | T-Handle with quick coupling | Quick change handle | 92 | 1 | 90002055 | GA1X4600 |
| 14 | Reduction Instrument for Medullary Nails | Reset rod | 7 | 1 | 90002016 | GA1X1600 |
| 15 | Reamer Head, 8.5 mm dia. | Soft expansion head 8.5 | 8.5 | 1 | 90002205 | GA3X06 |
| 15 | Reamer Head, 9 mm dia. | Soft expansion head 9 | 9 | 1 | 90002206 | GA3X07 |
| 15 | Reamer Head, 9.5 mm dia. | Soft expansion head 9.5 | 9.5 | 1 | 90002207 | GA3X07 |
| 15 | Reamer Head, 10 mm dia. | Soft expansion head 10 | 10 | 1 | 90002208 | GA3X07 |
| 15 | Reamer Head, 10.5 mm dia. | Soft expansion head 10.5 | 10.5 | 1 | 90002209 | GA3X07 |
| 15 | Reamer Head, 11 mm dia. | Soft expansion head 11 | 11 | 1 | 90002210 | GA3X07 |
| 15 | Reamer Head, 11.5 mm dia. | Soft expansion head 11.5 | 11.5 | 1 | 90002211 | GA3X07 |
| 15 | Reamer Head, 12 mm dia. | Soft expansion head 12 | 12 | 1 | 90002212 | GA3X07 |
| 15 | Reamer Head, 12.5 mm dia. | Soft expansion head 12.5 | 12.5 | 1 | 90002213 | GA3X07 |
| 15 | Reamer Head, 13 mm dia. | Soft expansion head 13 | 13 | 1 | 90002214 | GA3X07 |
| 16 | Awl, cannulated | Hollow hole opener | 4.2 | 1 | 90002005 | GA1X0500 |
| 17 | Protection Sleeve, 12/8 | Outer casing 12/8 | 12-8 | 2 | 90002227 | GA3X18 |
| 17 | Drill Bit Sleeve,8/4.3 | Drill sleeve 8/4.3 | 8/4.3 | 2 | 90002228 | GA3X19 |
| 17 | Trocar, 4.3 | Trocar 4.3 | 4.3 | 1 | 90002229 | GA3X20 |
| 18 | Screwdriver, hexagonal with spherical head | Connecting bolt universal wrench | SW6.5 | 1 | 90002106 | GA2X0600 |
| 19 | Connector, for Insertion Handle | Driver | SW11/M8 | 1 | 90002202 | GA3X0200 |
| 20 | Aiming Arm | Proximal sight | \ | 1 | 90002220 | GA3X1100 |
| 21 | Protection Sleeve, 11.5/8.5 | Outer casing 11.5/8.5 | 11.5/8.5 | 2 | 90002221 | GA3X12 |
| 21 | Guild Pin Sleeve, 8.5/3.2 | Guide needle cannula 8.5/3.2 | 8.5/3.2 | 2 | 90002222 | GA3X13 |
| 21 | Trocar 3.2mm | Trocar 3.2 | 3.2 | 1 | 90002223 | GA3X14 |
| 22 | Drill Bit, 4.3, Long | Long bone drill 4.3 | 4.3 | 2 | 90002231 | GA3X22 |
| 23 | Hammer Guide Shaft | Sliding hammer guide rod | M12/10 | 1 | 90002156 | GA2X56 |
| 24 | Depth Gauge for Locking Screws | Lock nail depth sounder | 20-100 | 1 | 90002230 | GA3X2100 |
| 25 | Direct Measuring Device for Guide Pin | Guide pin depth sounder | 40-130 | 1 | 90002224 | GA3X15 |
| 26 | Reamer (Fixation Sleeve for Reamer) | Proximal limit step drill | 6.5/4.5 | 1 | 90002225 | GA3X1600 |
| 27 | Sliding Hammer | Sliding hammer | 260 | 1 | 90002073 | GA1X6400 |
| 28 | Compression Screw | Pressure bolt | M6 | 1 | 90002226 | GA3X17 |
| 29 | Screwdriver Stardrive, T25 | Lock nail wrench T25 | T25 | 1 | 90002232 | GA3X2300 |
| 30 | Screwdriver Stardrive Shaft, T25 | Lock nail wrench lever T25 | T25 | 1 | 90002233 | GA3X24 |
| 31 | Ream 6.0 | Flat drill 6.0 | \ | 1 | 90002240 | GA3X31 |
| 32 | Drill Bit 6.0 | Bone Drill 6.0 | \ | 1 | 90002241 | GA3X32 |
| 33 | Reamer 3.4/6.0 | Step drill 3.4/6.0 | \ | 1 | 90002242 | GA3X33 |
| 34 | Direct Measuring Device for Drill Bits | Sounder 4.5 | 150 | 1 | 90002108 | GA2X08 |
| 35 | Drill Bit, 4.3 | Bone Drill 4.3 | 150 | 2 | 90002148 | GA2X48 |
| 36 | Handle with quick coupling | AO type quick change handle | \ | 1 | 90002155 | GA2X5500 |
| 37 | Pin Wrench | Small wrench | 4 | 1 | 90002103 | GA2X03 |
| 38 | Combination Wrench | Open-end wrench | SW11 | 1 | 90002102 | GA2X02 |
| 39 | Handle for Expander Spacer | Auxiliary positioning rod holder | 268 | 1 | 90002248 | GA3X3900 |
| 39 | Connecting Screw of Expander Space | Auxiliary positioning rod holding rod | 265 | 1 | 90002249 | GA3X4000 |
| 40 | Expander Wire for Expander Spacer | Auxiliary positioning rod inner core | 328 | 1 | 90002250 | GA3X4100 |
| 41 | L-Curette for Anterior Nail Contact | L-shaped spatula | 155 | 1 | 90002117 | GA2X17 |
| 42 | L-space, adjustable | Adjustable positioning rod | 9-12 | 1 | 90002243 | GA3X3400 |
| 43 | Space Shaft, 9 | Positioning rod 9 | 9 | 1 | 90002244 | GA3X35 |
| 44 | Space Shaft, 10 | Positioning rod 10 | 10 | 1 | 90002245 | GA3X36 |
| 45 | Space Shaft, 11-12 | Positioning rod 11-12 | 11-12 | 1 | 90002246 | GA3X37 |
| 46 | - | - | - | - | - | - |
| 47 | Extraction Screw | Pull bolt | M8×0.75 | 1 | 90002257 | GA3X48 |
| 48 | Aiming Beam for Locking, 340-420 | Guide rod 340-420 | 340-420 | 1 | 90002236 | GA3X2700 |
| 49 | - | - | - | - | - | - |
| 50 | Expander Spacer, 9 | Auxiliary positioning rod 9 | 9 | 1 | 90002251 | GA3X42 |
| 51 | Expander Spacer, 10 | Auxiliary positioning rod 10 | 10 | 1 | 90002252 | GA3X43 |
| 52 | Expander Spacer, 11-12 | Auxiliary positioning rod 11-12 | 11-12 | 1 | 90002253 | GA3X44 |
| 53 | Sspace Block | Positioning card block | \ | 1 | 90002247 | GA3X3800 |
| 54 | Aiming Arm for Distal Locking | Remote sight | \ | 1 | 90002254 | GA3X45 |
| 55 | Aiming Arm for Dynamic Locking | Dynamic hole sight | \ | 1 | 90002255 | GA3X4600 |
| 56 | - | - | - | - | - | - |
| 57 | Extraction Hook | Guide needle with hook | 2.8 | 1 | 90002015 | GA1X15 |
| 58 | Screwdriver Stardrive, cannulated | End cap hollow wrench | SW4 | 1 | 90002064 | GA1X5500 |
| 59 | Screwdriver, hexagonal with spherical head | Tail cap universal ball wrench | SW4 | 1 | 90002079 | GA1X6900 |
| - | Instrument Set Box | \ | \ | 1 | 90002258 | GA3X-0100-XH |
| - | Ream Head Box | \ | \ | 1 | 90002258 | (GA1X8400) |

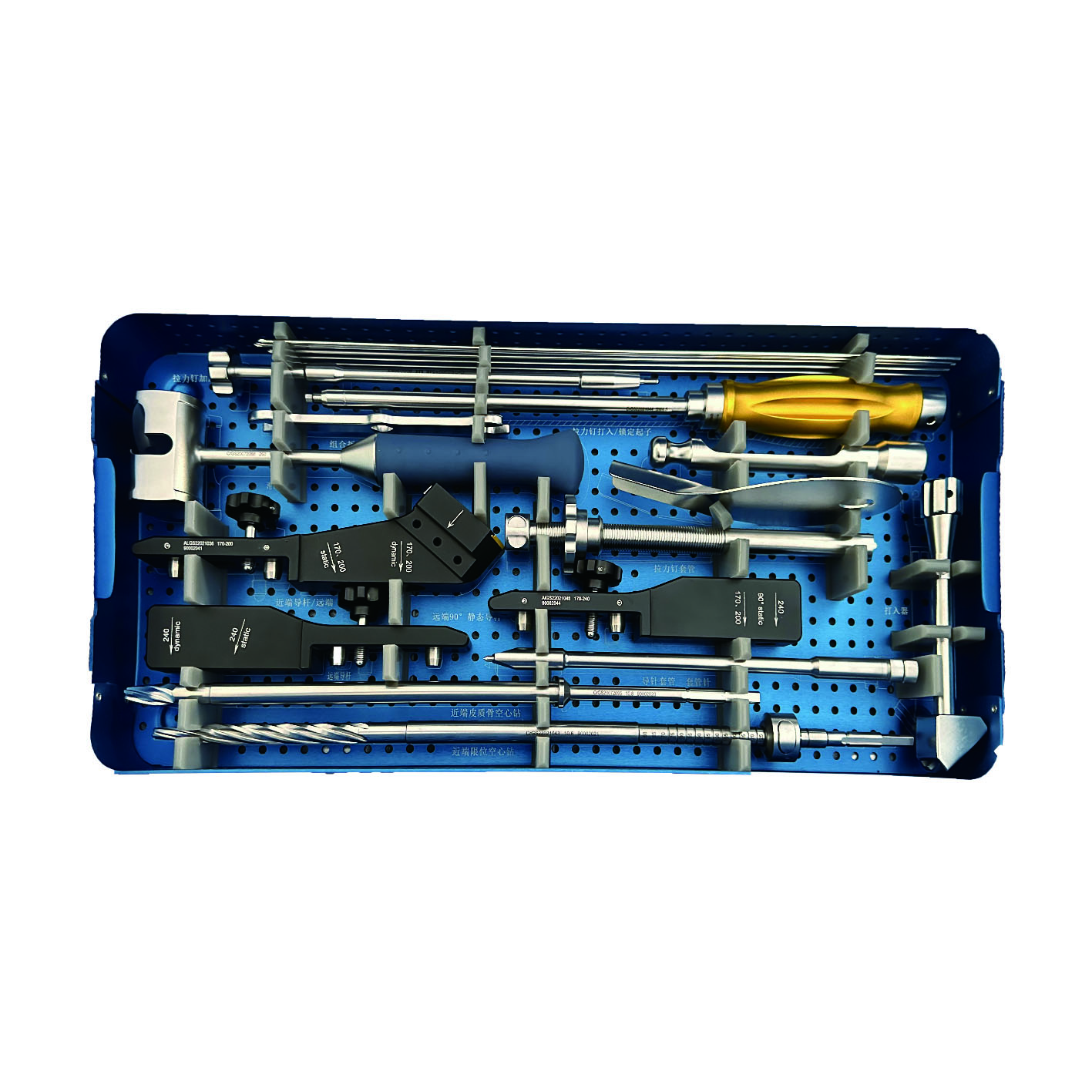

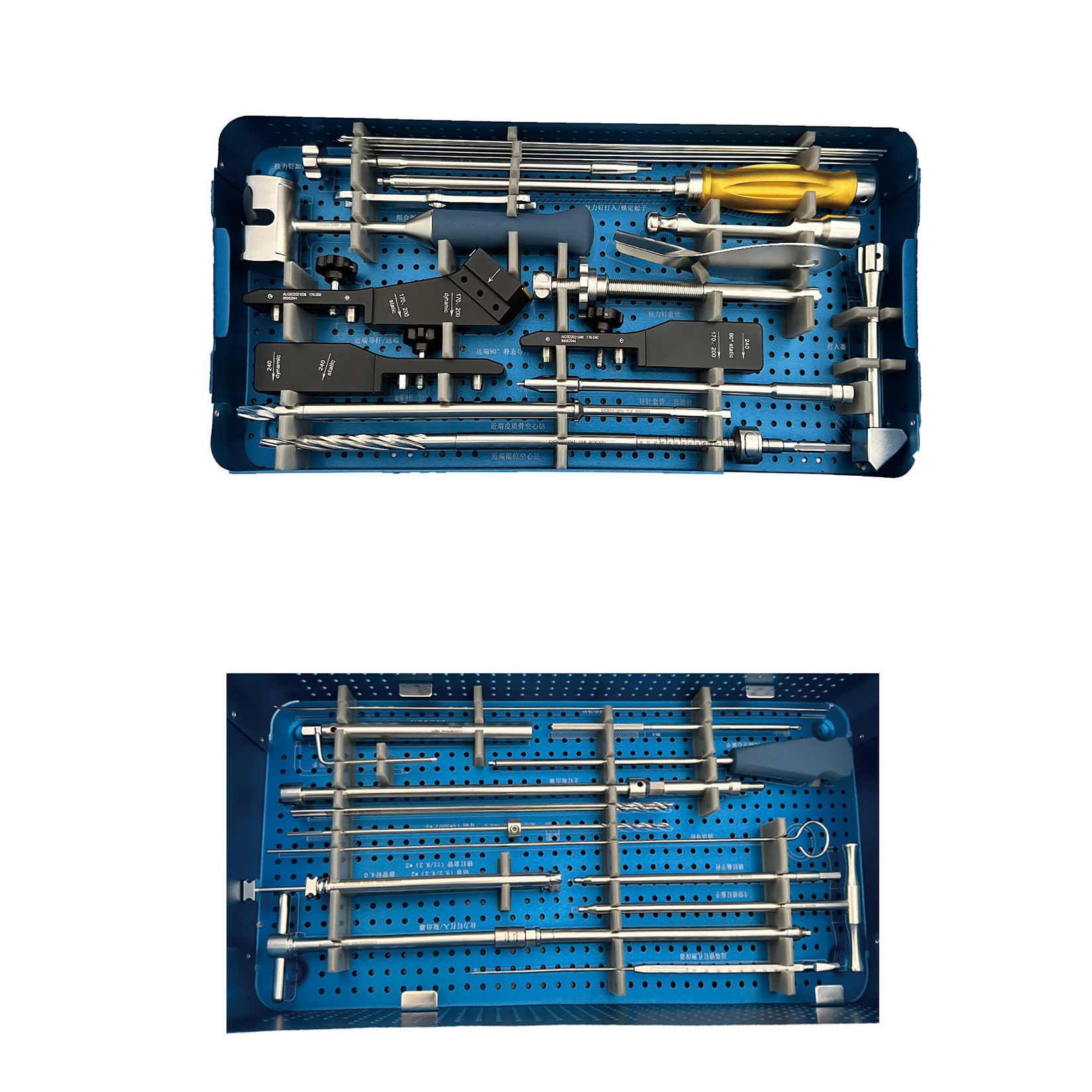

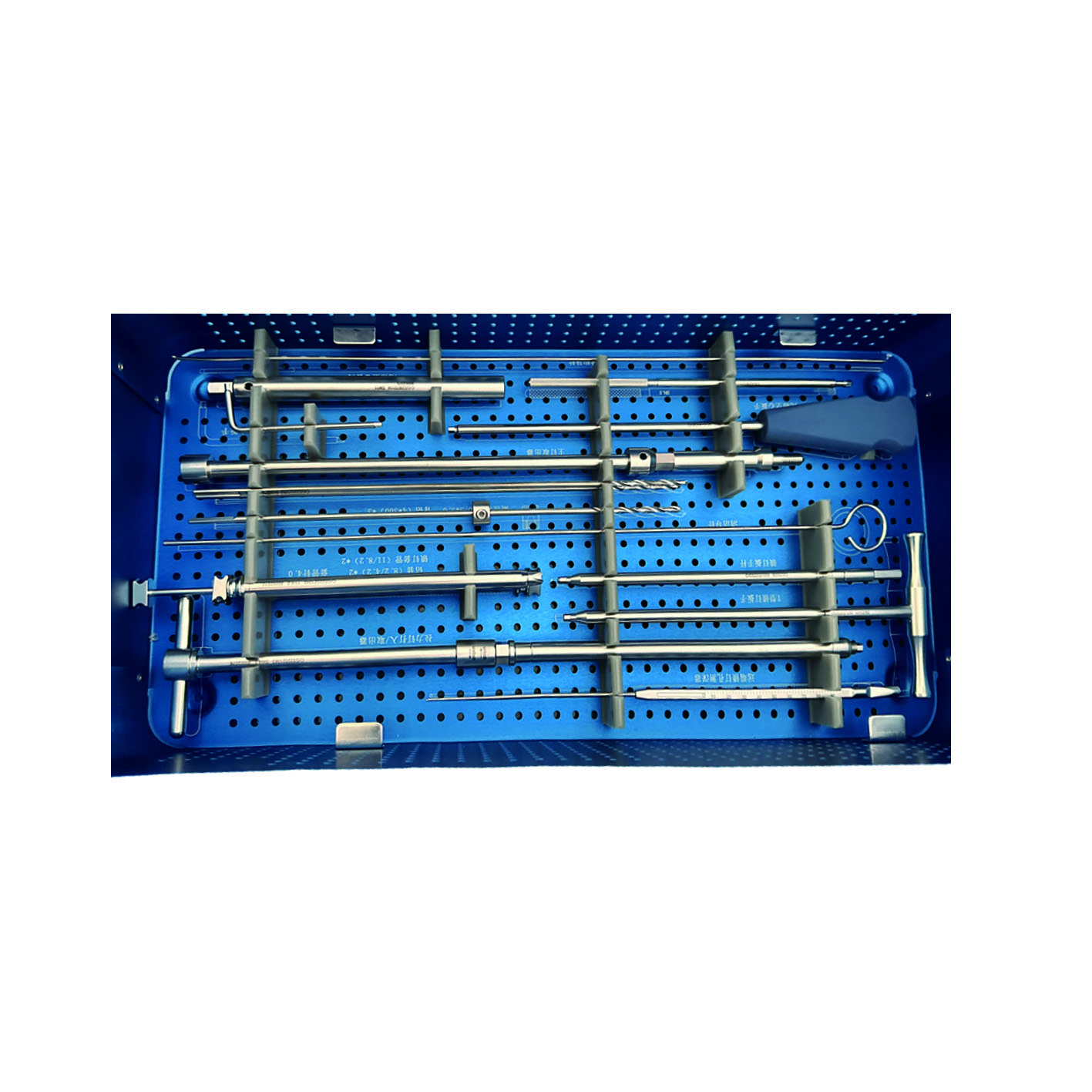

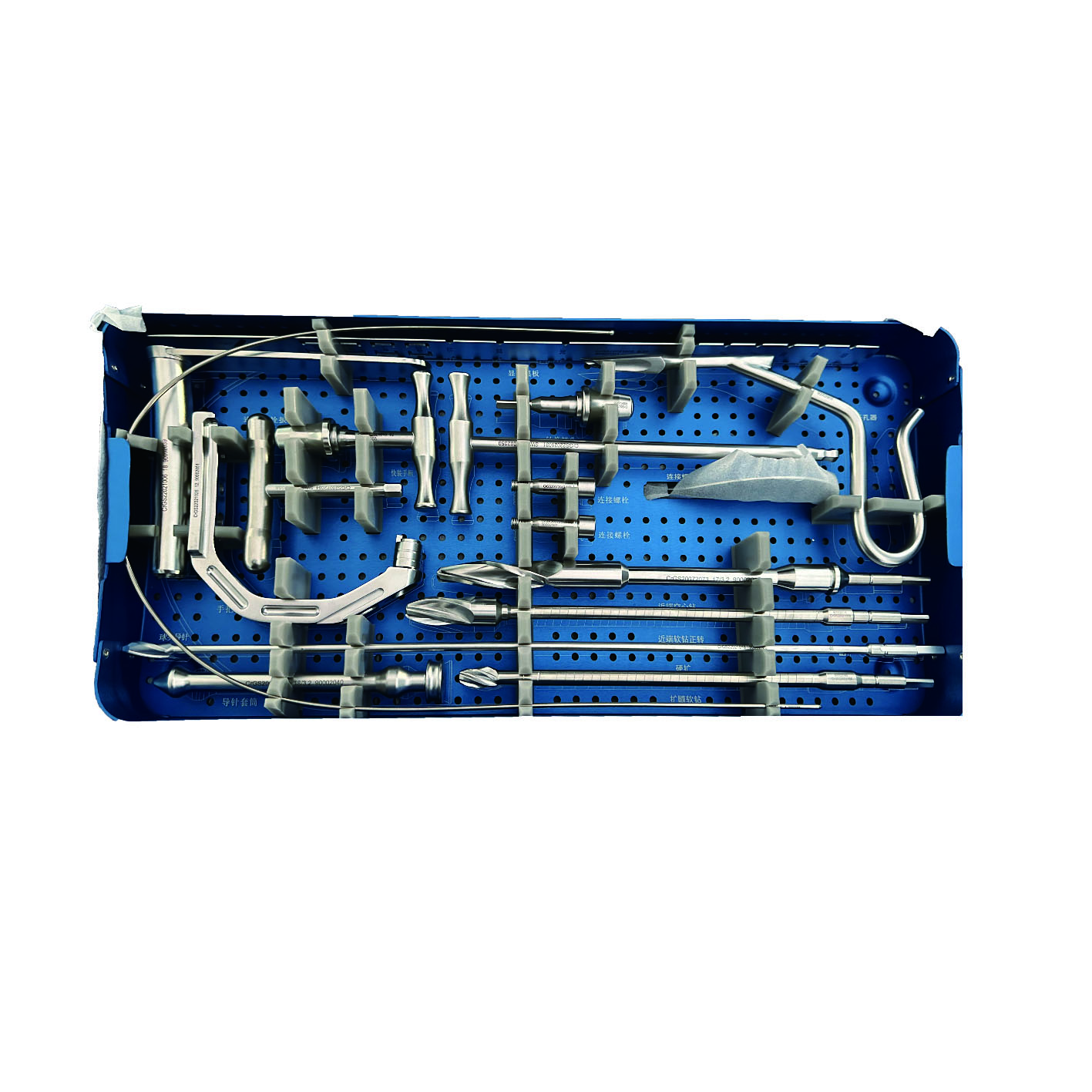

This instrument set is specifically engineered for orthopedic surgical interventions involving fracture fixation. It provides comprehensive tooling for the insertion, positioning, locking, and extraction of intramedullary interlocking nails in bone surgeries.
The set contains multiple Reamer Heads in 0.5 mm size increments, spanning from 8.5 mm diameter up to 13.0 mm diameter. This configuration ensures surgical flexibility for various medullary canal dimensions.
Yes. All surgical instruments in this list, including the guide pins, sleeves, and drill bits, are made from premium surgical-grade materials suited for standard sterilization protocols (e.g., autoclaving) to ensure clinical hygiene compliance.
The kit features dedicated Aiming Arms for proximal, distal, and dynamic locking. These arms act as physical guides during surgery, allowing precise screw alignment, targeting, and insertion relative to the pre-placed intramedullary nail.
Yes, the set includes an extraction hook, extraction screw, sliding hammer, and hammer guide shaft designed specifically for the safe, efficient, and controlled extraction of medullary implants during revision surgeries.
