Multi Function Power Tools HAS-B100 for Veterinary
Parameter
Data
Speed
0-1200rpm
Torque
2.9N.m
No-load Noise
≤45dB
Operation(V) voltage
7.2V
Sterilization temperature
155°
Radial circle run-out
≤0.1mm
Axial Movement
≤0.5mm
Chuck gripper diameter
≤4mm
Oscillations
0-16000cpm
Battery Capacity
1400mAh

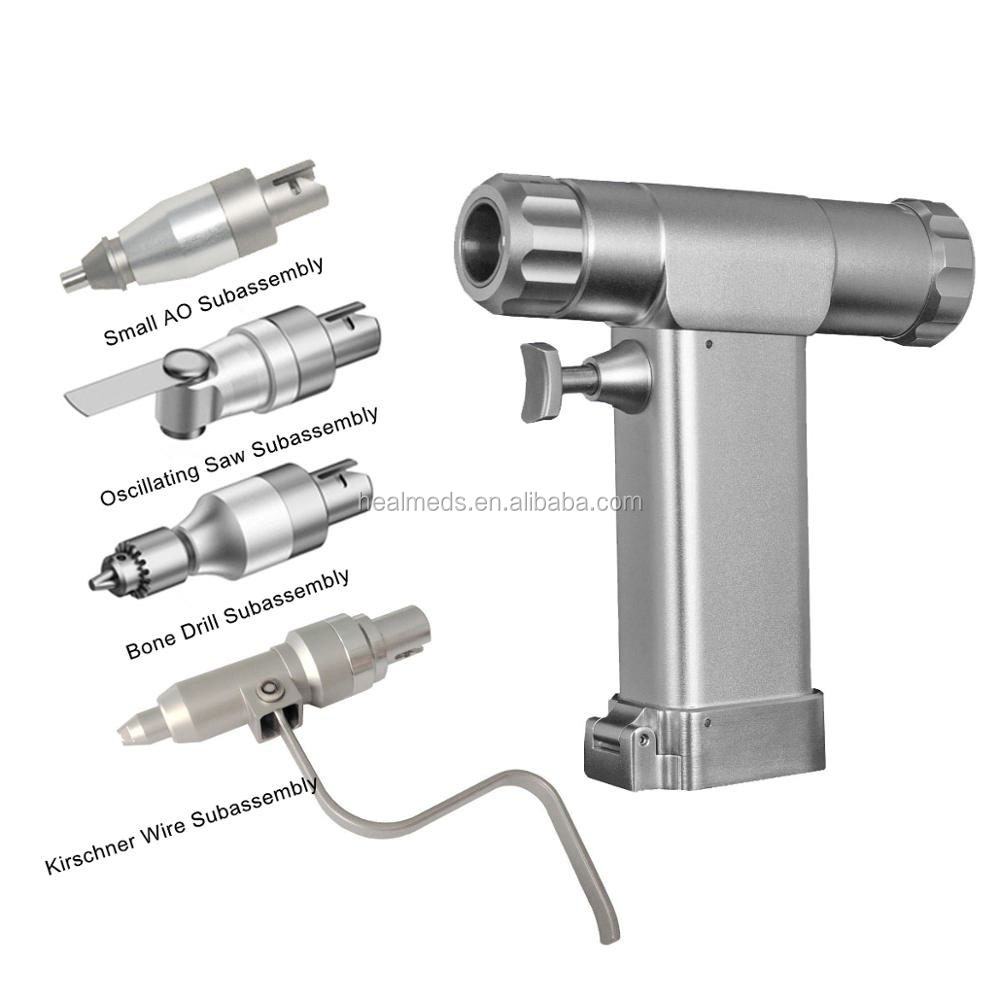

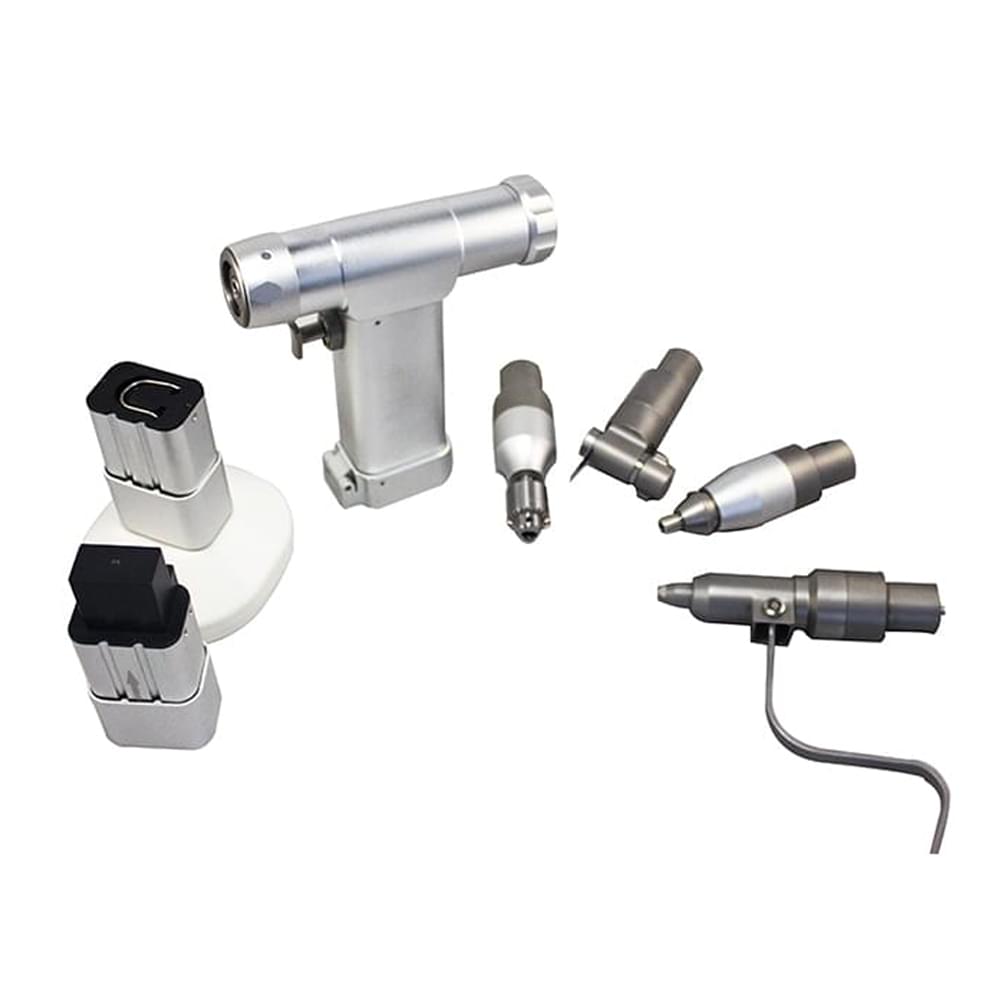

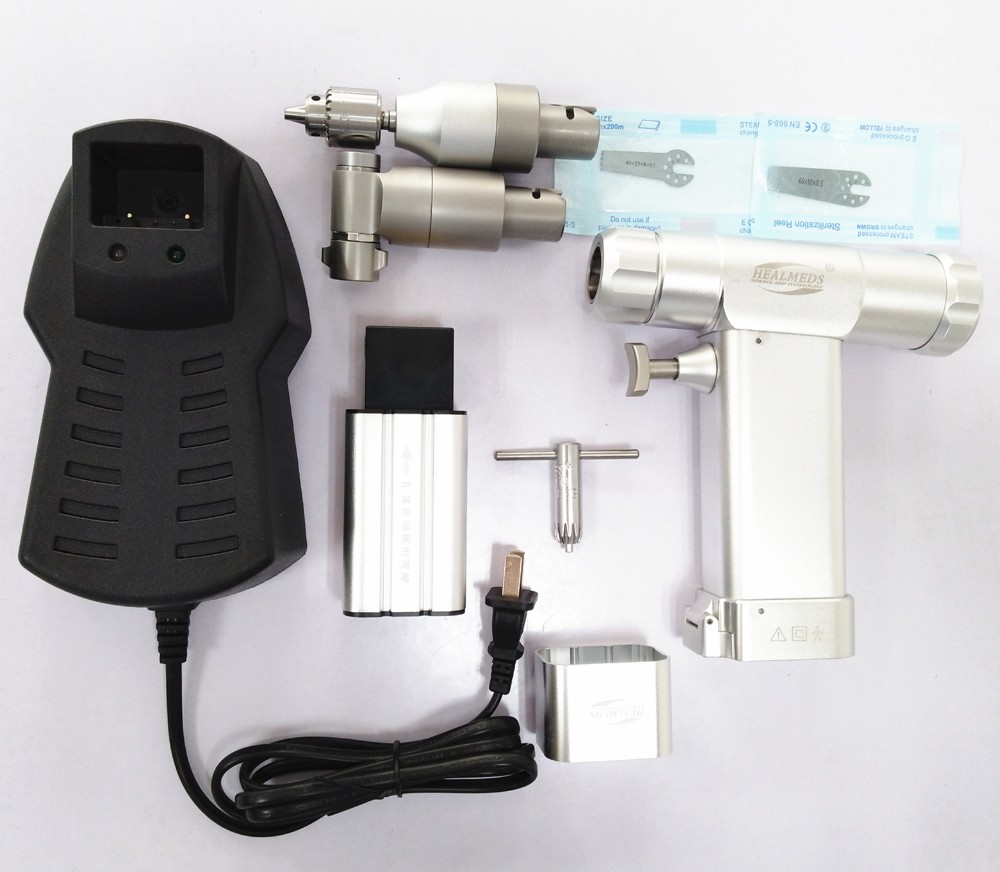

No.
Accessory
Qty.
Note
1

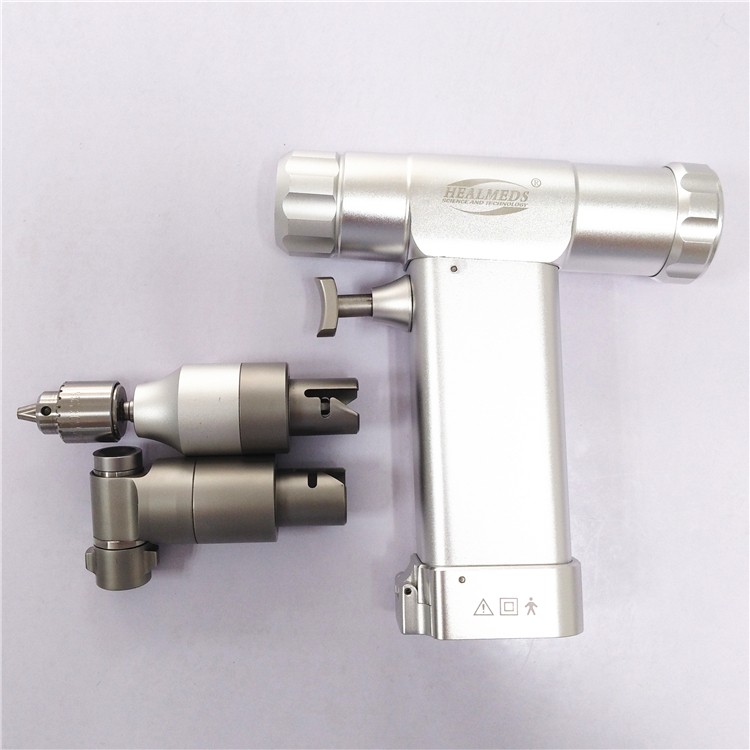

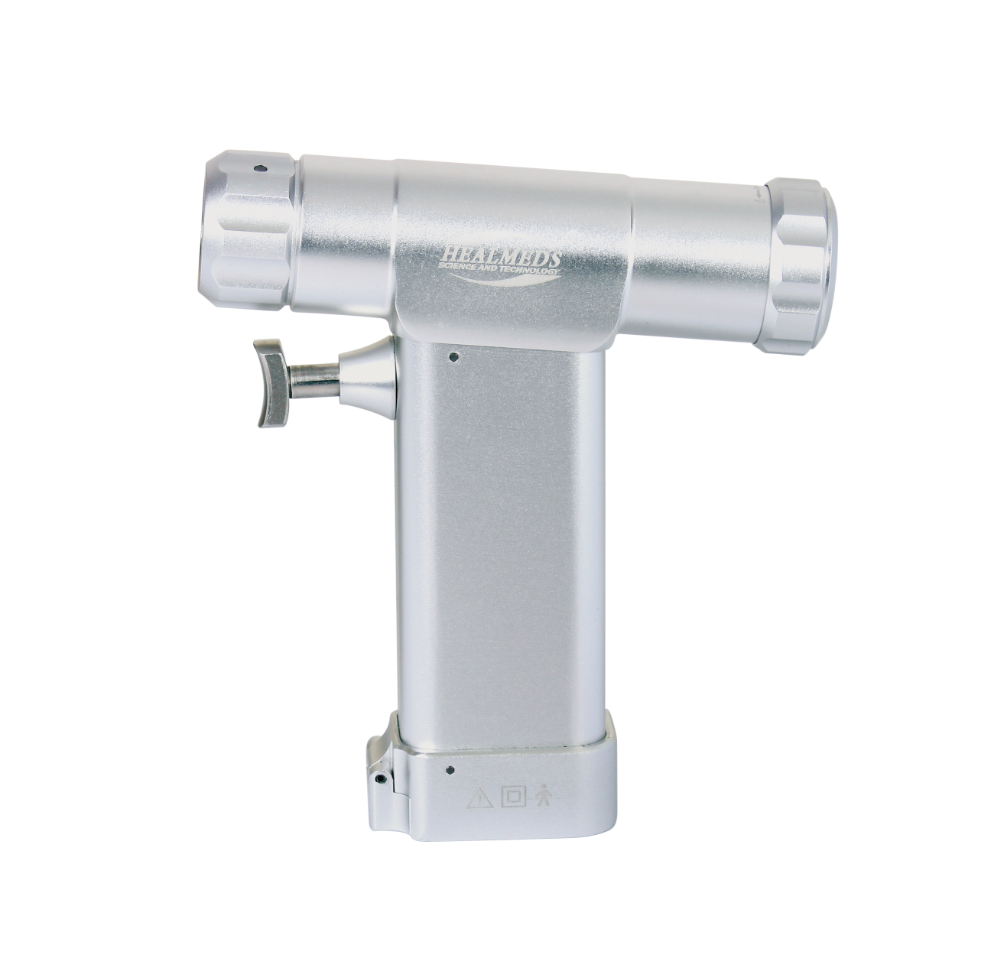

Handpiece
1
1.02kg, can be connected with several adapters, autoclavable up to 135℃
2

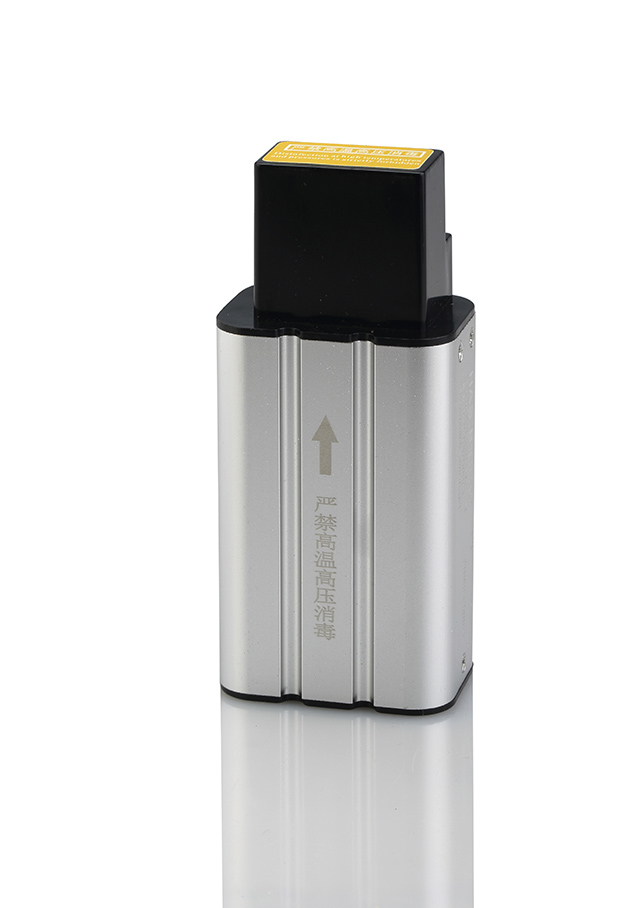

Battery
2
Could not be sterilized, could last for 30 minutes after fully charged
3
Charger
1
110-220V, match both European & American type
4

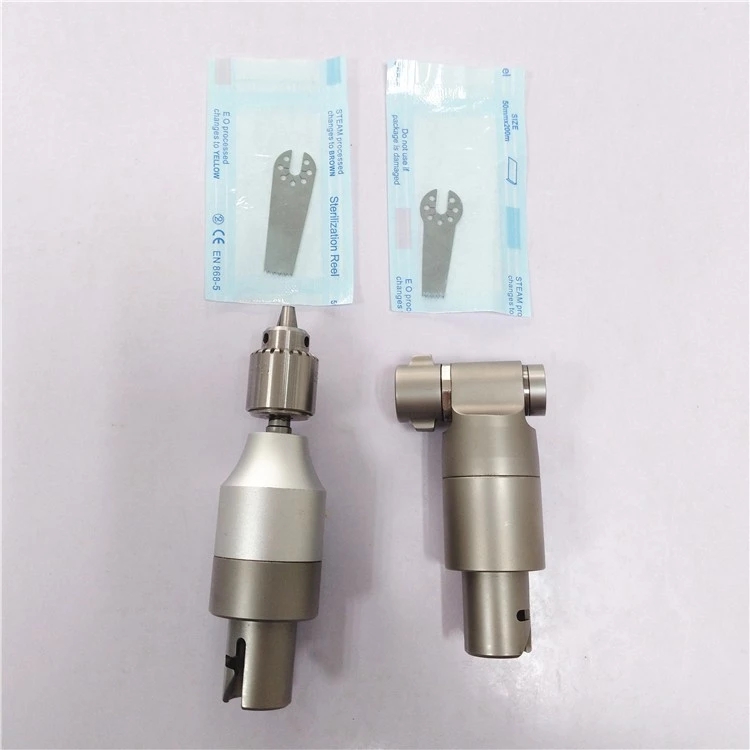

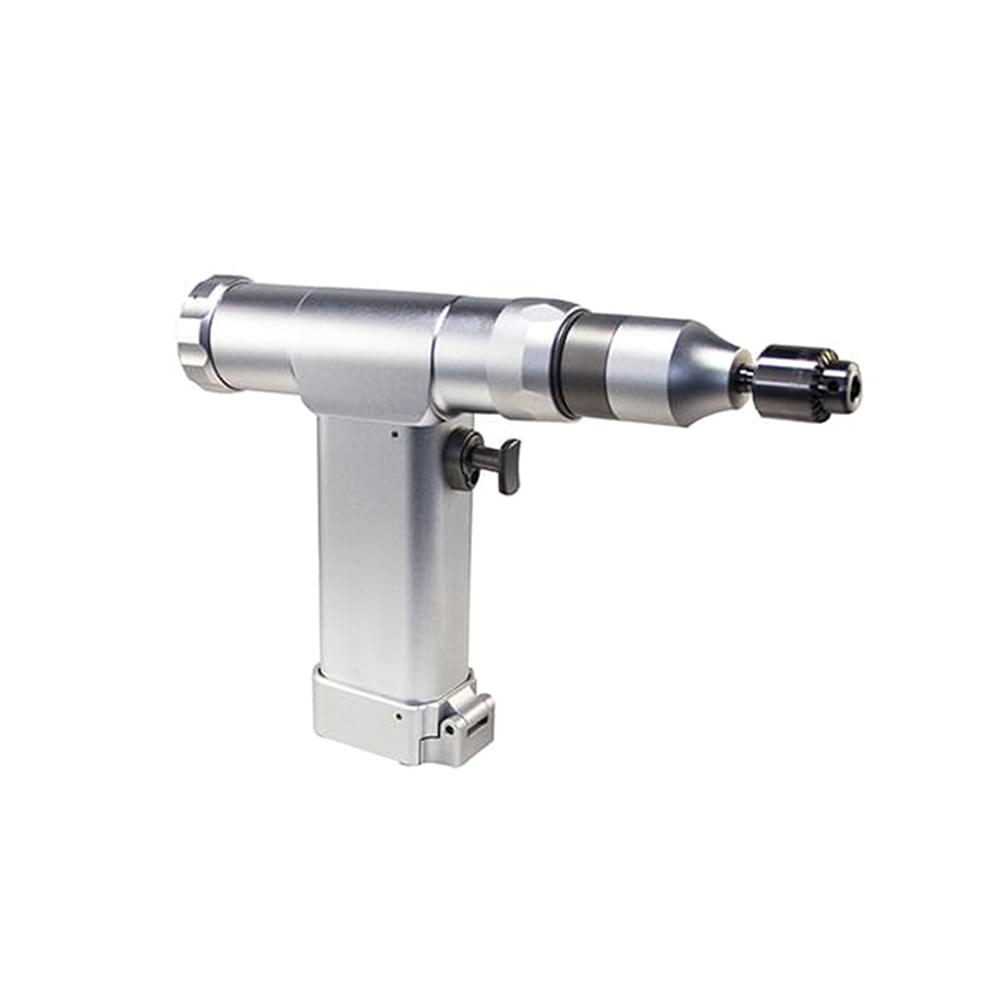

Drill chuck
1
Imported, high Coaxiality, suitable for trauma surgeries
5
Oscillating Saw
1
Used for joint surgeries
6
Blade
2
7 stars blades with optional sizes
7
Small AO
1
Trauma surgery for AO Type, it's for drilling holes and fixing the plates
8
K-Wire
1
Holding K-wire very conveniently
9
Sterilizing channel
1
Could be sterilized
10
Aluminum case
1
445*270*150mm, Weight: 6kg
* Price range is just for reference. It depends on client's choices for attachments.
Product Gallery
Warranty for whole machine is 1 year, for motor is 2 years, for the battery and other fast consumption items is 3 months.
Operation Notes
Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ), if the temperature is over 135 °C, the motor could be damaged.
Normal bone drill can only hold drill bits less than 6mm, acetabulum reaming drill with big torque, rpm is around 300, canulate drill is used with nail or K wire, rpm is around 600.
The battery need to be get out of the power tool after surgery. Otherwise the small automatic discharge of the electric will make the life of the battery short.
The battery cannot be sterilized, it is not autoclavable.
The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur, make sure it stays dry.
The battery space in the handpiece of the tool should not have any water, after sterilization.
The cranial bur blade is made of medical stainless steel, in order to avoid broken, so it is flexible and not very hard, it is easy to be attrite, we suggest each blade only use for 1 surgery.

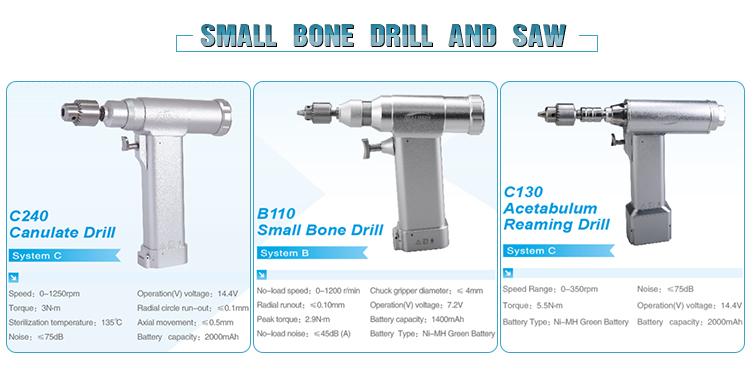

Related Products

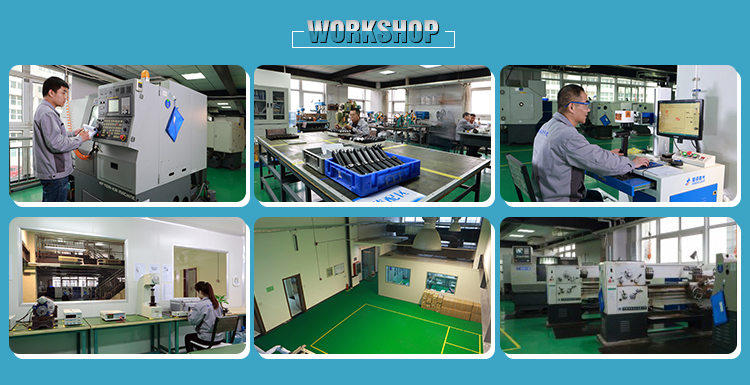

Facilities & Production
Certifications

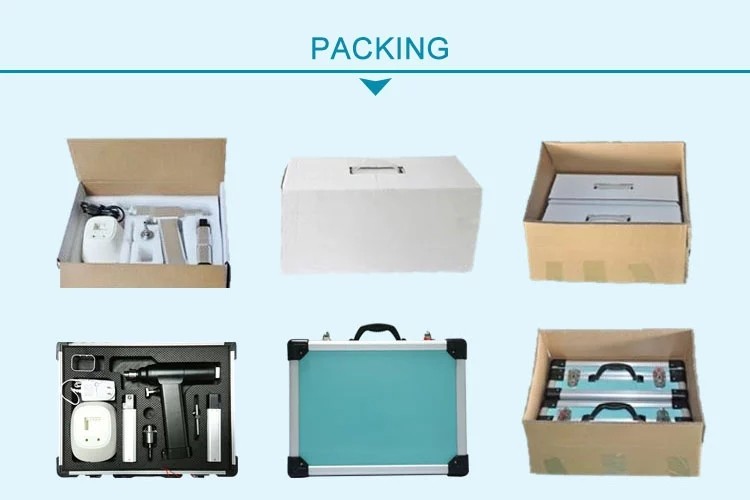

Packaging & Shipping
Frequently Asked Questions
Q1: Can the batteries of the HAS-B100 be autoclaved?
A1: No, the batteries cannot be sterilized or autoclaved. Only the handpiece and designated sterilizing channels are autoclavable up to 135°C (or 155°C for the improved type).
Q2: How long does the battery last on a full charge?
A2: Each battery can run continuously for approximately 30 minutes once it is fully charged. The standard kit includes two batteries to ensure uninterrupted surgical workflow.
Q3: What types of veterinary surgeries is this tool suitable for?
A3: The HAS-B100 is highly versatile and suitable for orthopedic trauma surgeries (using the drill chuck or Small AO attachment) as well as joint surgeries (utilizing the oscillating saw).
Q4: What is the warranty coverage for this system?
A4: The complete machine comes with a 1-year warranty, the motor has a 2-year warranty, and the batteries along with other fast-consumption items are covered for 3 months.
Q5: Why must the battery be removed immediately after surgery?
A5: Removing the battery prevents small automatic electric discharges while the tool is idle, which helps protect and extend the overall lifespan of the battery.
Q6: What is the maximum drill bit size supported?
A6: The standard drill chuck gripper supports drill bits up to 4mm in diameter. Normal bone drills can hold bits up to 6mm.
