Medispirex Medispirex

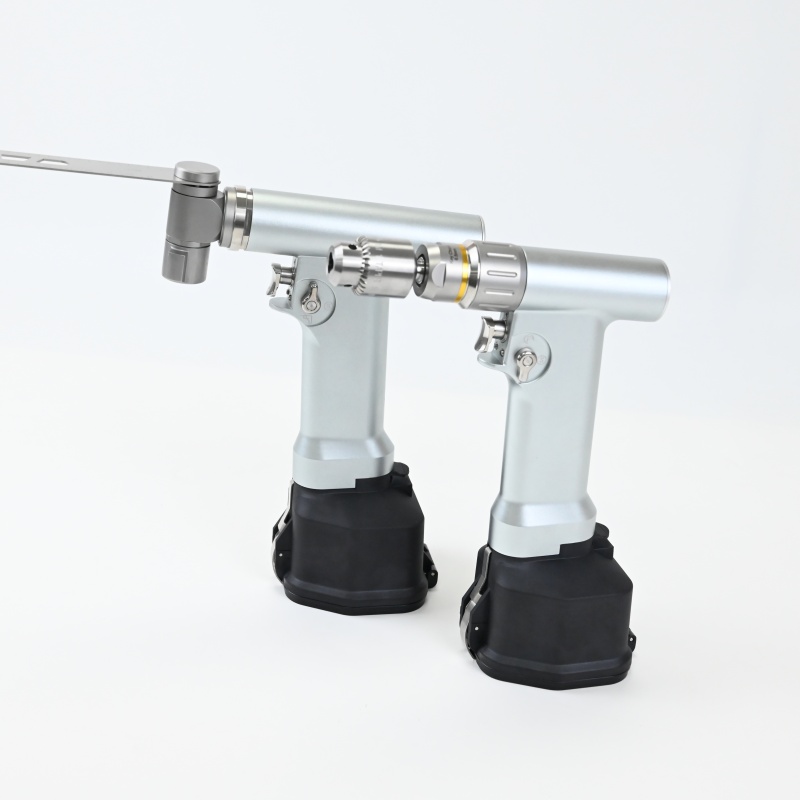

Linvetac / Hall / Conmed Battery System Medical Orthopedic Drill Set Multifunction Drill and Saw

Product Description

E100 Multifunction Drill
Mini Multi Function Bone Drill Machine
Based on the Conmed, our E100 Bone Saw includes a wide range of heavy-duty drills and saws. The battery and performance are the same as the Conmed, with dual-speed control for multiple cutting options. The reciprocating saw is compact and has excellent ergonomics. It cuts faster and harder. The rotating handle allows for high-speed drilling and high-torque reaming. It utilizes innovative motor technology to provide less vibration and better handle control. There are single and dual trigger options as well as reaming and drilling attachments. It also comes with a modular sterilization container and batteries.
E100 Multifunction Drill
Specifications & Output
  • Speed Range (Key Chuck Attachment): 0-1200rpm
  • Torque (Key Chuck Attachment): 3.5N-m
  • Speed Range (Reaming Attachment): 0-400rpm
  • Torque (Reaming Attachment): 10N-m
Key Features
  • All copper thick wall chuck, very durable, high concentricity, stable speed, spindle clamping, easy and quick to change drill bits.
  • Tail power switch design, smooth operation, beautiful and does not affect the use.
  • Micro motor, full copper core wire movement, low noise, high power, high stability, easy to store.
  • Frosted texture process on the surface of the body, effectively prevent slippage, comfortable to hold, not tired of long time use.
Details
Detail Image 1 Detail Image 4
Specification
Item Value
Multi-Function Handpiece Equipped with brushless DC canulated motor imported from USA

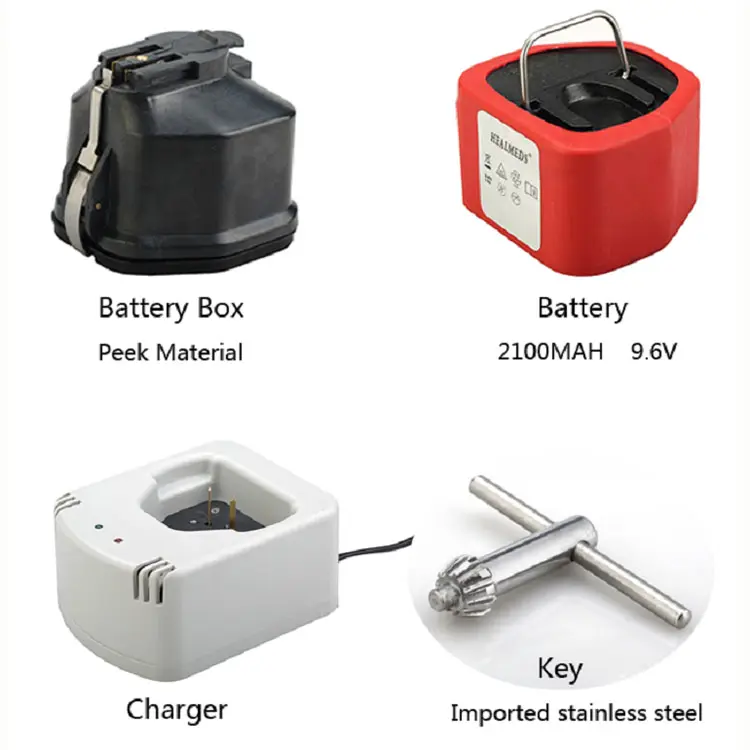

Battery Ni-MH with Longer service-life, High capacity: 2100MAH Voltage: 9.6V

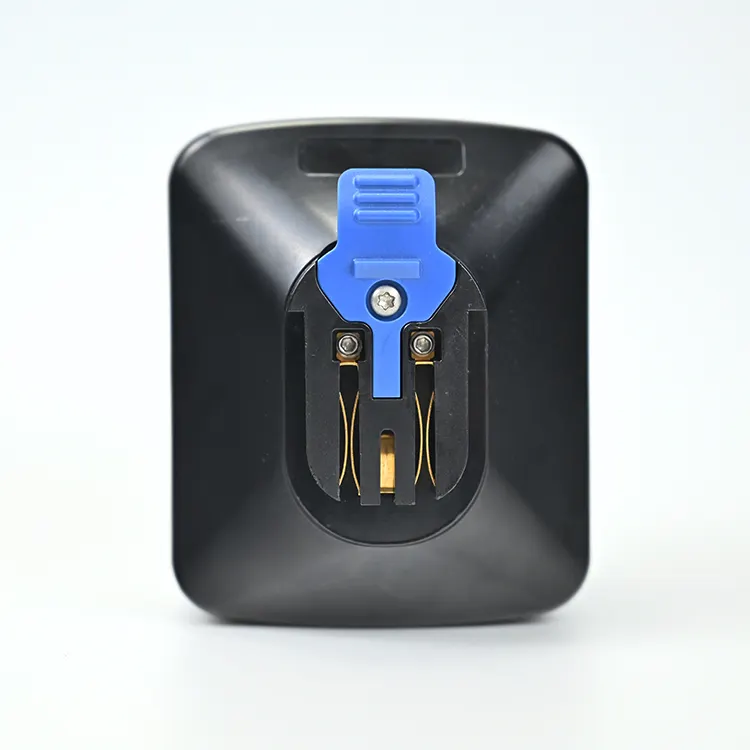

Battery Box Peek material: sterilized more than 3000 times
Charger More convenient design to guarantee the battery life
Transfer Shield Imported stainless steel 304
Key Chuck Speed Range 0-1200rpm, Torque 3.5NM
Reaming Attachment Speed Range 0-400rp, Torque 10NM

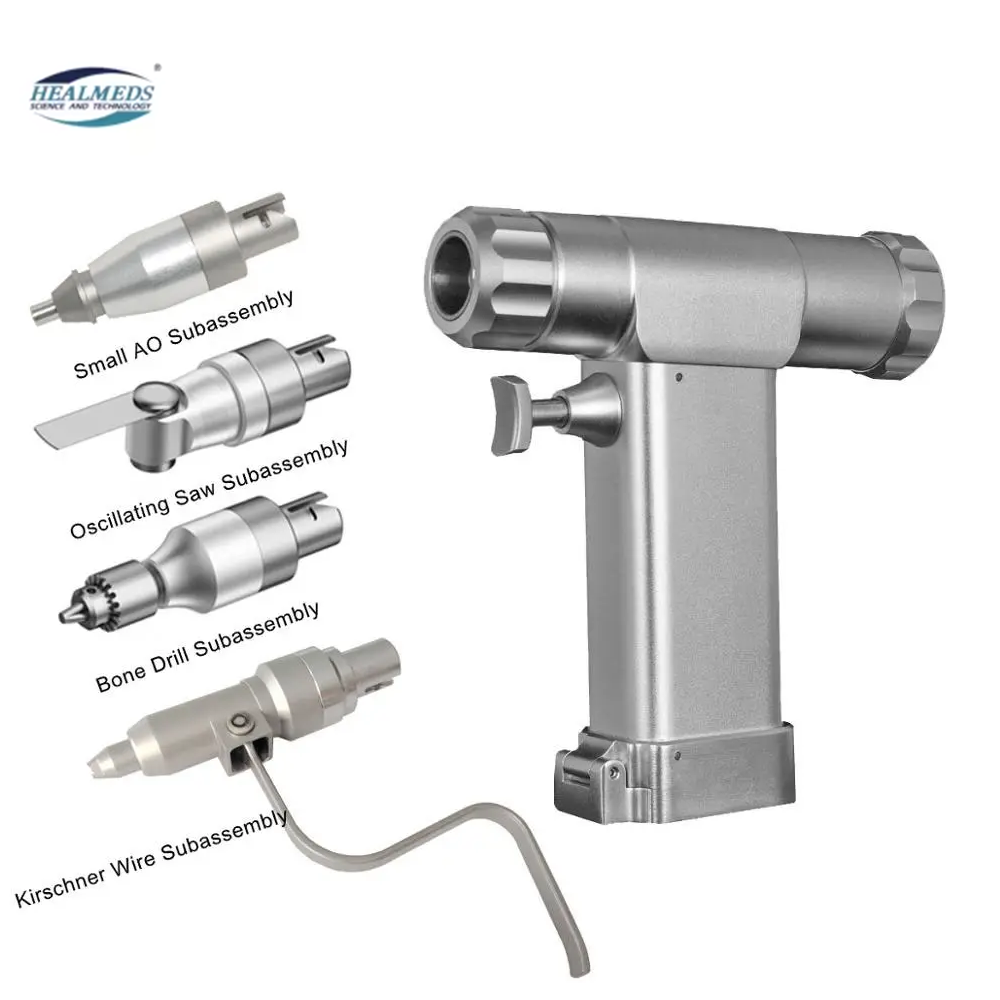

K-wire Attachment 0.7-1.6mm / 1.6-4.0mm
Reciprocating Saw Frequency: 0-12000cpm
Sterilizing box 445*275*215mm, 4.6Kg
Payment & Delivery
Payment and Delivery
Our Advantages
FAQ
FAQ Overview

What are the main clinical applications for the E100 Multifunction Drill?

The E100 Multifunction Drill is designed for orthopedic surgical procedures, offering attachments for high-speed drilling, high-torque reaming, K-wire insertion, and reciprocating sawing.

What is the battery capacity and how long does it last?

The device utilizes a high-capacity 2100MAH Ni-MH battery with a 9.6V output. The battery and performance parameters are engineered to match standard professional industry requirements, ensuring long-term operational efficiency.

Can the battery box and attachments withstand autoclaving?

Yes, the battery box is constructed from durable Peek material, which can be sterilized more than 3000 times. The transfer shield is made of high-grade imported 304 stainless steel to ensure safety and hygiene standard compliance.

What are the speed and torque limits for the drilling and reaming functions?

The Key Chuck attachment supports speeds from 0 to 1200rpm with a torque of 3.5N-m. The Reaming attachment supports speeds from 0 to 400rpm with a torque rating of 10N-m.

Does the system feature variable speeds and vibration control?

Yes, the system is designed with dual-speed control options and advanced motor technology that helps reduce overall vibration, giving the user excellent handgrip control during operation.
