| Picture number | Part Name | Specification | Size | Quantity | Coding | Drawing number |
| 1 | Radiographic Ruler | Development template | 9-12 | 1 | 90002201 | GA3X01 |
| 2 | Guide Wire 3.2 mm | Thread guide pin | 3.2×400 | 5 | 90002003 | GA1X03 |
| 3 | Hand Reamer | Hard expansion | 9 | 1 | 90002025 | GA1X25 |
| 4 | Flexible Ream Shaft | Soft expansion tool bar is rotating forward | 8.5-14 | 1 | 90002204 | GA3X0500 |
| 5 | Opening Drill Bit , cannulated | Proximal Hollow Drill | 14 | 1 | 90002203 | GA3X04 |
| 6 | Protection Sleeve | Inlet guide tube | \ | 1 | 90002601 | GA8X01 |
| 6 | Handle for Protection Sleeve | Channel handle | \ | 1 | 90002602 | GA8X0200 |
| 7 | Gripper | Guide pin holder | 117 | 1 | 90002050 | GA1X4100 |
| 8 | Connection Screw, cannulated | Connecting bolt | M8×0.75 | 2 | 90002218 | GA3X09 |
| 9 | Rod Pusher for Reaming Rod with Hexagonal Screwdriver | Ball handle wrench | SW6.5 | 1 | 90002217 | GA3X0800 |
| 10 | Insertion Handle for Nail | Handle | \ | 1 | 90002219 | GA3X10 |
| 11 | Multihole Drill Sleeve | Cellular locator | 17/3.2 | 1 | 90002603 | GA8X0300 |
| 12 | quick coupling | Adapter | 85 | 1 | 90002056 | GA1X4700 |
| 13 | T-Handle with quick coupling | Quick change handle | 92 | 1 | 90002055 | GA1X4600 |
| 14 | Reduction Instrument for Medullary Nails | Reset rod | 7 | 1 | 90002016 | GA1X1600 |
| 15 | Reamer Head, 8.5 mm dia. | Soft expansion head 8.5 | 8.5 | 1 | 90002205 | GA3X06 |
| 15 | Reamer Head, 9 mm dia. | Soft expansion head 9 | 9 | 1 | 90002206 | GA3X07 |
| 15 | Reamer Head, 9.5 mm dia. | Soft expansion head 9.5 | 9.5 | 1 | 90002207 | GA3X07 |
| 15 | Reamer Head, 10 mm dia. | Soft expansion head 10 | 10 | 1 | 90002208 | GA3X07 |
| 15 | Reamer Head, 10.5 mm dia. | Soft expansion head 10.5 | 10.5 | 1 | 90002209 | GA3X07 |
| 15 | Reamer Head, 11 mm dia. | Soft expansion head 11 | 11 | 1 | 90002210 | GA3X07 |
| 15 | Reamer Head, 11.5 mm dia. | Soft expansion head 11.5 | 11.5 | 1 | 90002211 | GA3X07 |
| 15 | Reamer Head, 12 mm dia. | Soft expansion head 12 | 12 | 1 | 90002212 | GA3X07 |
| 15 | Reamer Head, 12.5 mm dia. | Soft expansion head 12.5 | 12.5 | 1 | 90002213 | GA3X07 |
| 15 | Reamer Head, 13 mm dia. | Soft expansion head 13 | 13 | 1 | 90002214 | GA3X07 |
| 16 | Awl , cannulated | Hollow hole opener | 4.2 | 1 | 90002005 | GA1X0500 |
| 17 | Protection Sleeve, 12/8 | Outer casing 12/8 | 12-8 | 2 | 90002227 | GA3X18 |
| 17 | Drill Bit Sleeve,8/4.3 | Drill sleeve 8/4.3 | 8/4.3 | 2 | 90002228 | GA3X19 |
| 17 | Trocar,4.3 | Trocar 4.3 | 4.3 | 1 | 90002229 | GA3X20 |
| 18 | Screwdriver, hexagonal with spherical head | Connecting bolt universal wrench | SW6.5 | 1 | 90002106 | GA2X0600 |
| 19 | Connector, for Insertion Handle | Driver | SW11/M8 | 1 | 90002202 | GA3X0200 |
| 20 | Aiming Arm | Proximal sight | \ | 1 | 90002220 | GA3X1100 |
| 21 | Protection Sleeve, 11.5/8.5 | Outer casing 11.5/8.5 | 11.5/8.5 | 2 | 90002221 | GA3X12 |
| 21 | Guild Pin Sleeve,8.5/3.2 | Guide needle cannula 8.5/3.2 | 8.5/3.2 | 2 | 90002222 | GA3X13 |
| 21 | Trocar 3.2mm | Trocar 3.2 | 3.2 | 1 | 90002223 | GA3X14 |
| 22 | Drill Bit,4.3,Long | Long bone drill 4.3 | 4.3 | 2 | 90002231 | GA3X22 |
| 23 | Hammer Guide Shaft | Sliding hammer guide rod | M12/10 | 1 | 90002156 | GA2X56 |
| 24 | Depth Gauge for Locking Screws, | Lock nail depth sounder | 20-100 | 1 | 90002230 | GA3X2100 |
| 25 | Direct Measuring Device for Guide Pin | Guide pin depth sounder | 40-130 | 1 | 90002224 | GA3X15 |
| 26 | Reamer(Fixation Sleeve for Reamer) | Proximal limit step drill | 6.5/4.5 | 1 | 90002225 | GA3X1600 |
| 27 | Sliding Hammer | Sliding hammer | 260 | 1 | 90002073 | GA1X6400 |
| 28 | Compression Screw | Pressure bolt | M6 | 1 | 90002226 | GA3X17 |
| 29 | Screwdriver Stardrive, T25 | Lock nail wrench T25 | T25 | 1 | 90002232 | GA3X2300 |
| 30 | Screwdriver Stardrive Shaft, T25 | Lock nail wrench lever T25 | T25 | 1 | 90002233 | GA3X24 |
| 31 | Ream 6.0 | Flat drill 6.0 | \ | 1 | 90002240 | GA3X31 |
| 32 | Drill Bit 6.0 | Bone Drill 6.0 | \ | 1 | 90002241 | GA3X32 |
| 33 | Reamer 3.4/6.0 | Step drill 3.4/6.0 | \ | 1 | 90002242 | GA3X33 |
| 34 | Direct Measuring Device for Drill Bits | Sounder 4.5 | 150 | 1 | 90002108 | GA2X08 |
| 35 | Drill Bit,4.3 | Bone Drill 4.3 | 150 | 2 | 90002148 | GA2X48 |
| 36 | Handle with quick coupling | AO type quick change handle | \ | 1 | 90002155 | GA2X5500 |
| 37 | Pin Wrench | Small wrench | 4 | 1 | 90002103 | GA2X03 |
| 38 | Combination Wrench | Open-end wrench | SW11 | 1 | 90002102 | GA2X02 |
| 39 | Handle for Expander Spacer | Auxiliary positioning rod holder | 268 | 1 | 90002248 | GA3X3900 |
| 39 | ConnectingScrew of Expander Space | Auxiliary positioning rod holding rod | 265 | 1 | 90002249 | GA3X4000 |
| 40 | Expander Wire for Expander Spacer | Auxiliary positioning rod inner core | 328 | 1 | 90002250 | GA3X4100 |
| 41 | L-Curette for Anterior Nail Contact | L-shaped spatula | 155 | 1 | 90002117 | GA2X17 |
| 42 | L-space , adjustable | Adjustable positioning rod | 9-12 | 1 | 90002243 | GA3X3400 |
| 43 | Space Shaft,9 | Positioning rod 9 | 9 | 1 | 90002244 | GA3X35 |
| 44 | Space Shaft,10 | Positioning rod 10 | 10 | 1 | 90002245 | GA3X36 |
| 45 | Space Shaft,11-12 | Positioning rod 11-12 | 11-12 | 1 | 90002246 | GA3X37 |
| 46 | - | - | - | - | - | - |
| 47 | Extraction Screw | Pull bolt | M8×0.75 | 1 | 90002257 | GA3X48 |
| 48 | Aiming Beam for Locking, 340-420 | Guide rod 340-420 | 340-420 | 1 | 90002236 | GA3X2700 |
| 49 | - | - | - | - | - | - |
| 50 | Expander Spacer,9 | Auxiliary positioning rod 9 | 9 | 1 | 90002251 | GA3X42 |
| 51 | Expander Spacer,10 | Auxiliary positioning rod 10 | 10 | 1 | 90002252 | GA3X43 |
| 52 | Expander Spacer,11-12 | Auxiliary positioning rod 11-12 | 11-12 | 1 | 90002253 | GA3X44 |
| 53 | Sspace Block | Positioning card block | \ | 1 | 90002247 | GA3X3800 |
| 54 | Aiming Arm for Distal Locking | Remote sight | \ | 1 | 90002254 | GA3X45 |
| 55 | Aiming Arm for Dynamic Locking | Dynamic hole sight | \ | 1 | 90002255 | GA3X4600 |
| 56 | - | - | - | - | - | - |
| 57 | Extraction Hook | Guide needle with hook | 2.8 | 1 | 90002015 | GA1X15 |
| 58 | Screwdriver Stardrive, cannulated | End cap hollow wrench | SW4 | 1 | 90002064 | GA1X5500 |
| 59 | Screwdriver, hexagonal with spherical head | Tail cap universal ball wrench | SW4 | 1 | 90002079 | GA1X6900 |

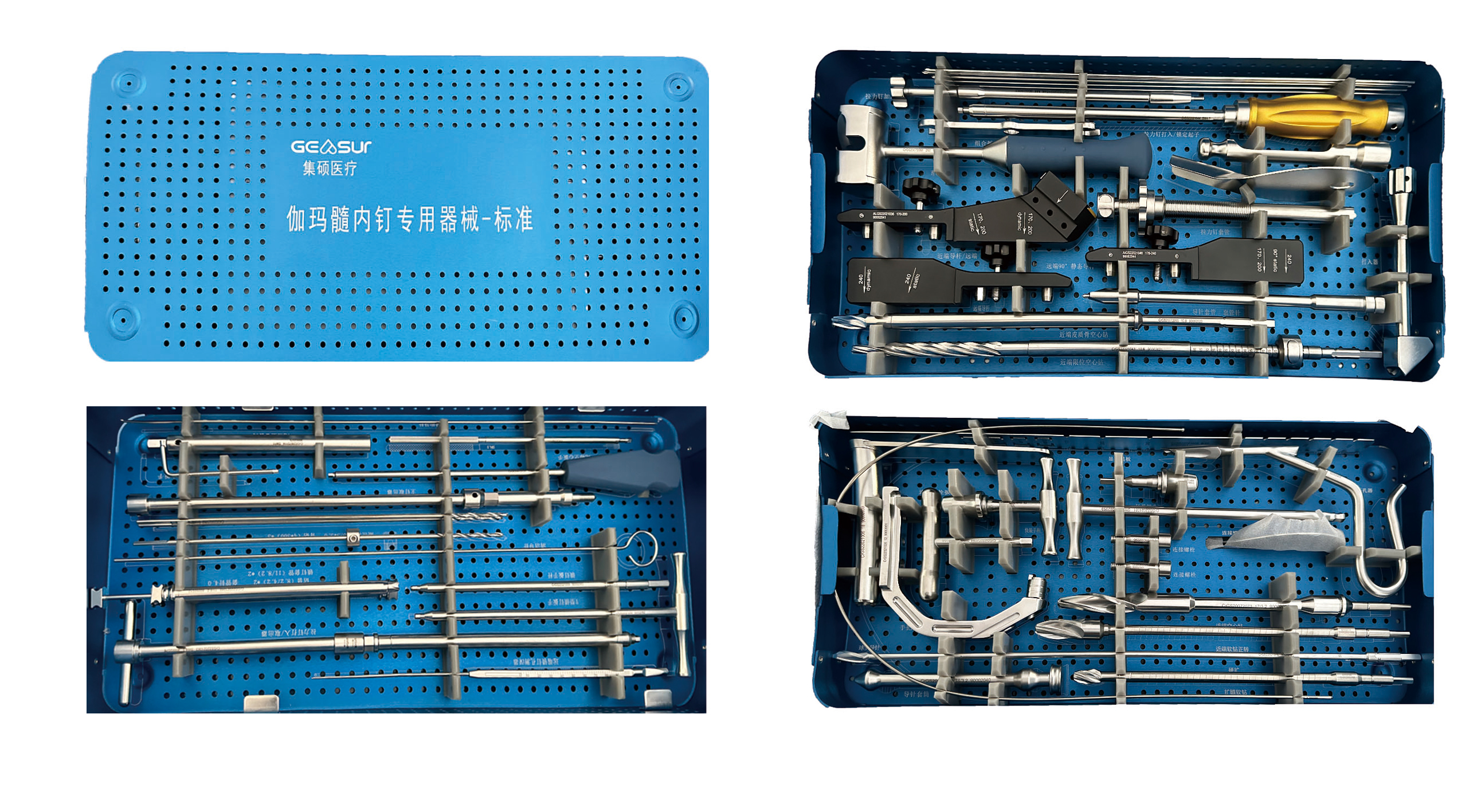

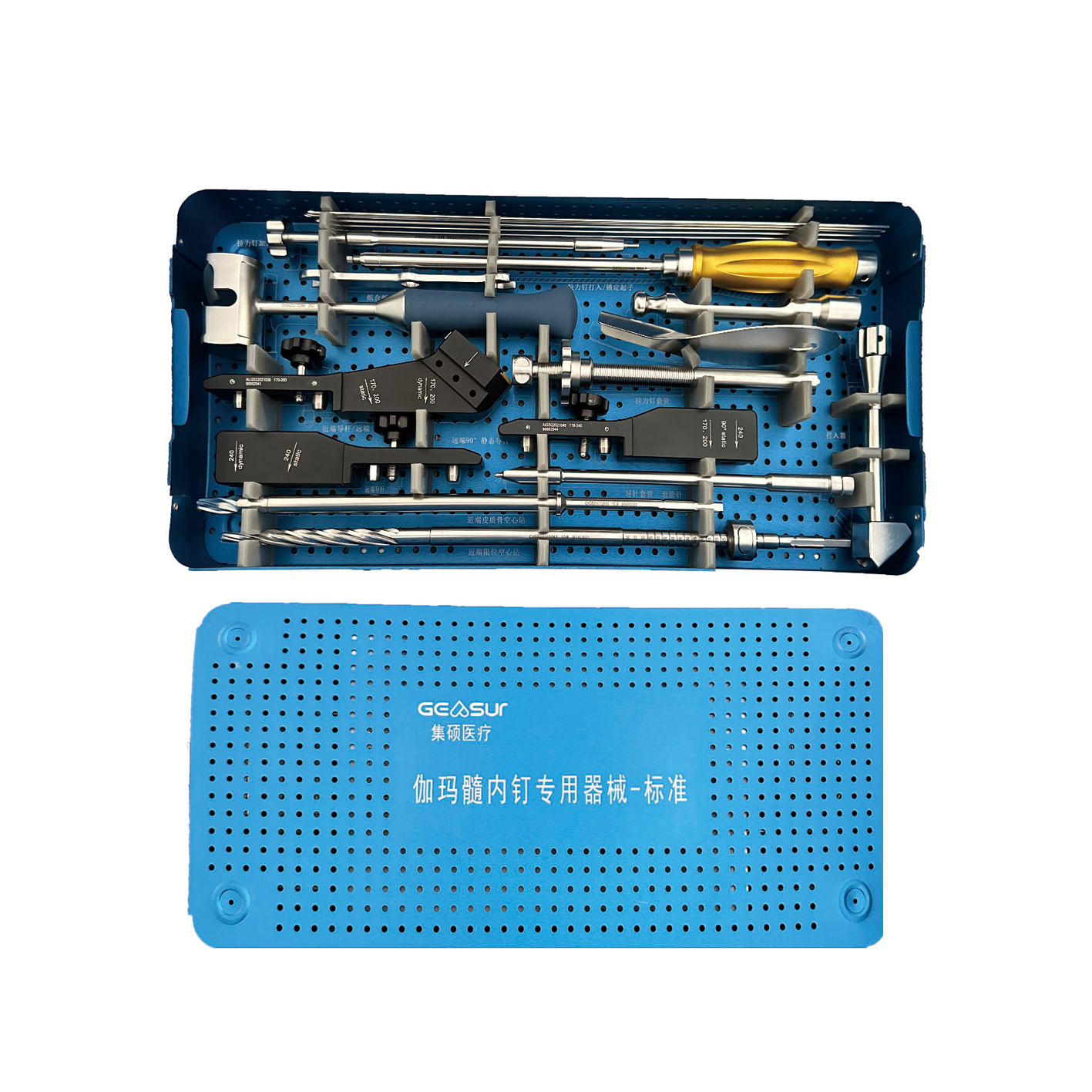

| - | Insrument Set Box | \ | \ | 1 | 90002258 | GA3X-0100-XH |
| - | Ream Head Box | \ | \ | 1 | - | (GA1X8400) |
