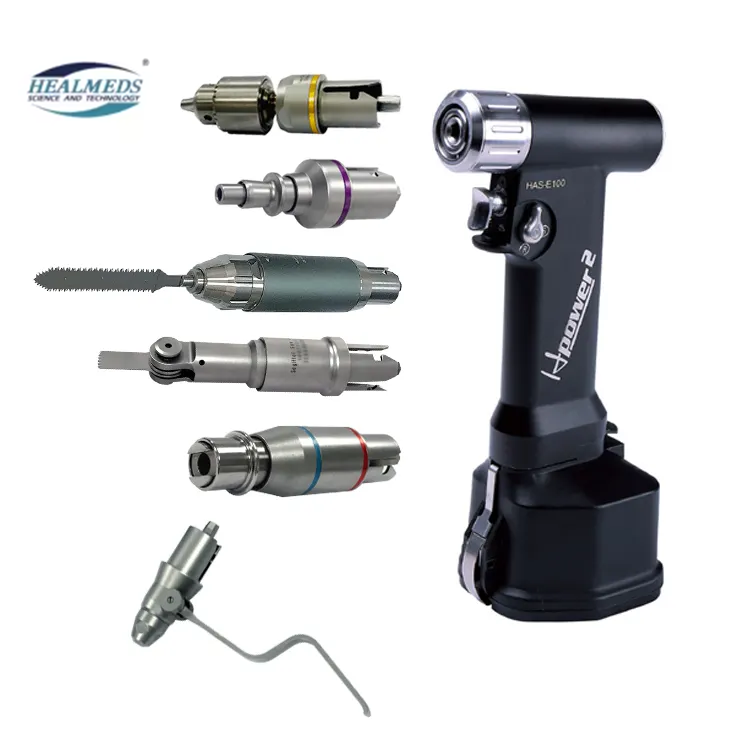

E100 Multifunction Drill
Mini multi function bone drill machine
Features & Performance
- Speed Range (Key Chuck Attachment): 0-1200rpm
- Torque (Key Chuck Attachment): 3.5N-m
- Speed Range (Reaming Attachment): 0-400rpm
- Torque (Reaming Attachment): 10N-m
- All copper thick wall chuck, very durable, high concentricity, stable speed, spindle clamping, easy and quick to change drill bits.
- Tail power switch design, smooth operation, beautiful and does not affect the use.
- Micro motor, full copper core wire movement, low noise, high power, high stability, easy to store.
- Frosted texture process on the surface of the body, effectively prevent slippage, comfortable to hold, not tired of long time use.
Technical Specifications
| Item |
Value |
| Multi-Function Handpiece |
Equipped with brushless DC canulated motor imported from USA |

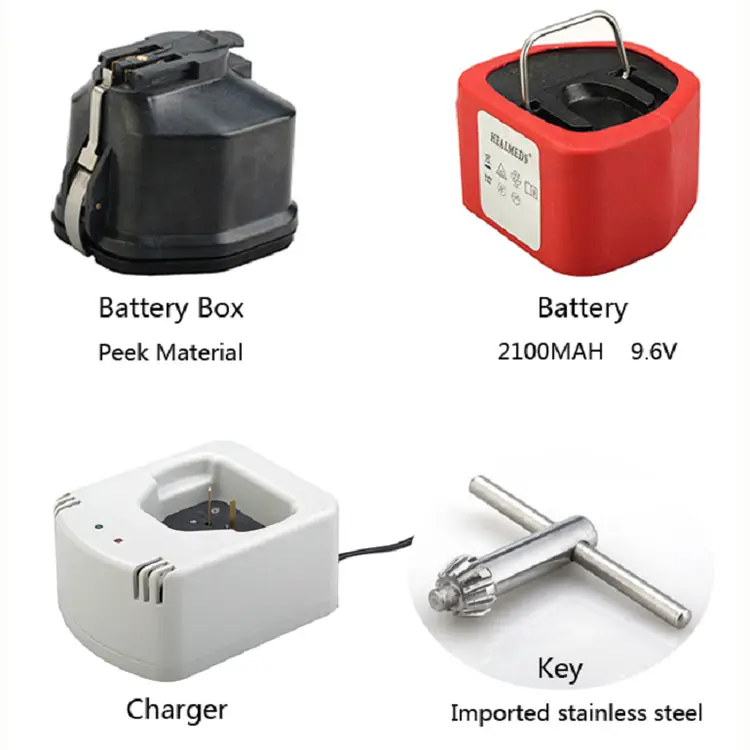

| Battery |
Ni-MH with Longer service-life, High capacity:2100MAH Voltage: 9.6V |
| Battery Box |
Peek material: sterilized more than 3000 times |
| Charger |
More convenient design to guarantee the battery life |
| Transfer Shield |
Imported stainless steel 304 |
| Key Chuck |
Speed Range 0-1200rpm, Torque 3.5NM |
| Reaming Attachment |
Speed Range 0-400rp, Torque 10NM |
| K-wire Attachment |
0.7-1.6mm/1.6-4.0mm |

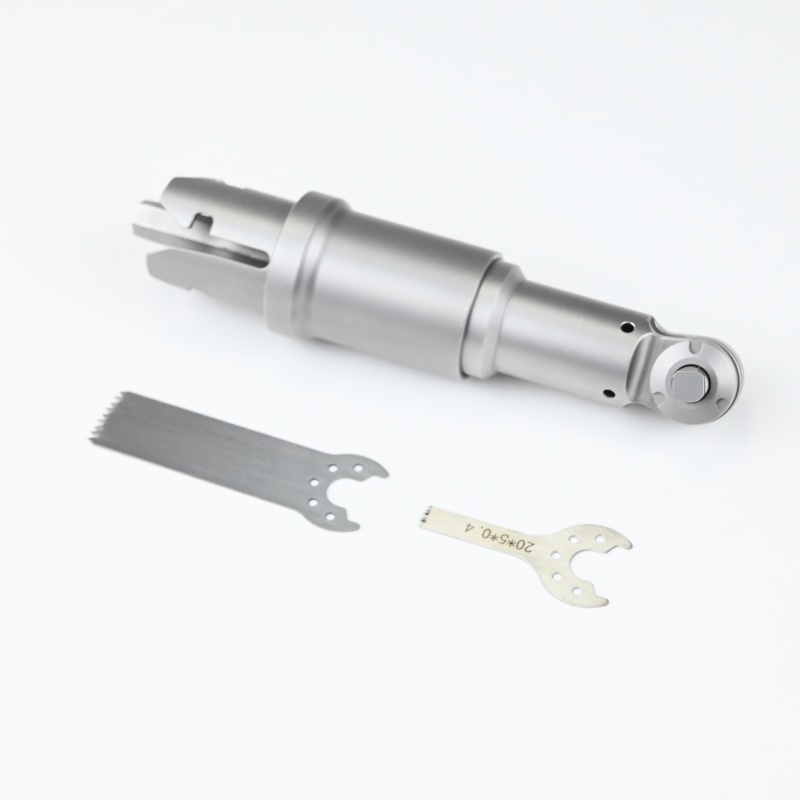

| Reciprocating Saw |
Frequency: 0-12000cpm |
| Sterilizing box |
445*275*215mm, 4.6Kg |
FAQ
What are the primary applications of the E100 Multifunction Drill?
The E100 Multifunction Drill is designed for versatile orthopedic surgeries. Equipped with different attachments, it can perform standard drilling, reaming, K-wire insertion, and reciprocating saw cuts with high precision.
Can the battery box and transfer shield withstand high-temperature sterilization?
Yes, the battery box is made of premium PEEK material and can be sterilized over 3000 times. The transfer shield is made of high-grade 304 stainless steel, which supports standard autoclaving processes.
What is the advantage of the brushless DC motor?
The brushless DC motor (imported from the USA) provides higher torque output, reduced noise level, lower heat generation, and a significantly longer service life compared to traditional brushed motors.
How is the speed adjusted during orthopedic procedures?
The handpiece offers variable speed control. The rotation speed can be controlled precisely via the trigger switch up to 1200rpm for key chuck drilling and 400rpm for reaming attachments.

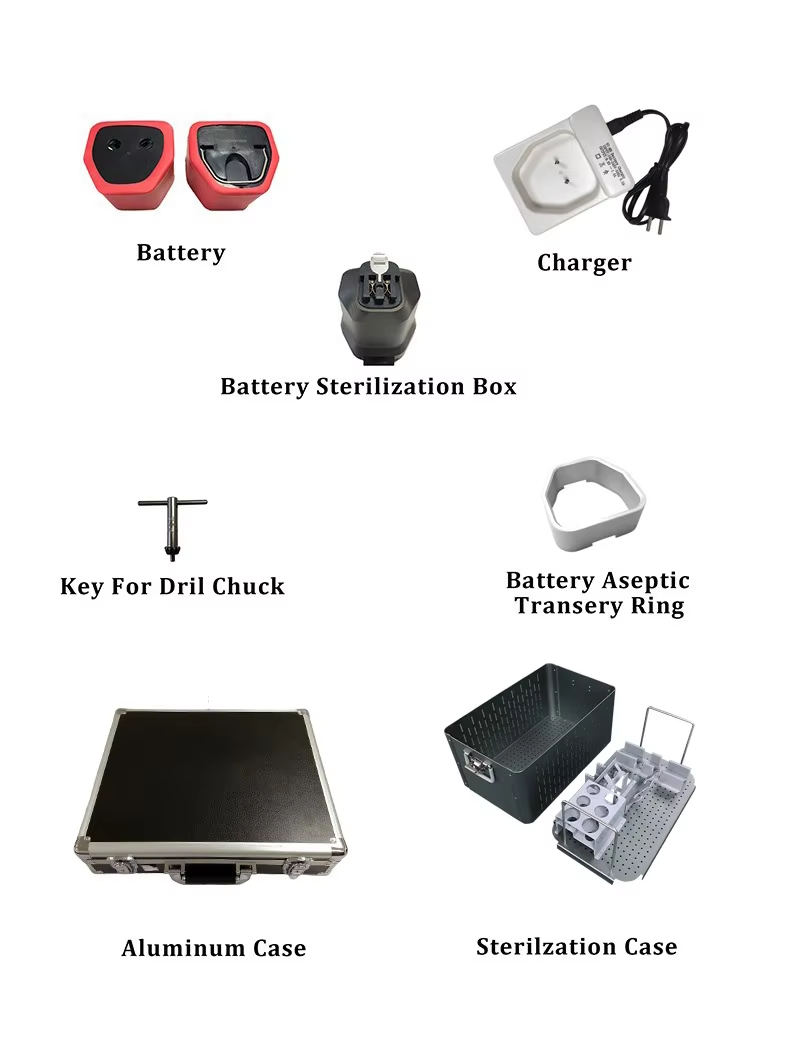

What components are included in the standard sterilizing box?
The system is shipped in a robust sterilizing box (445*275*215mm, 4.6Kg) that secures the multi-function handpiece, battery packs, quick charger, transfer shield, and required attachments like the key chuck and reamer.
